Welcome to the Forum @Ryan UK Edge 2017!



I understand from our Forum messaging that the new-to-you 2017 Edge presently is exhibiting locked steering with a scanner-revealed DTC U0131, indicating lost communication with the EPAS Steering Gear's Power Steering Control Module (PSCM).



Your Edge's vehicle history shows a related-repair effort recorded in Ford's Professional Technician System (PTS) in February 2024, about which you will eventually seek additional local feedback.



In the meantime, because of your personal technical capability and your need to move your Edge to a safer location, attached below and in an immediately following post are Workshop Manual and Wiring references in PDF format, to assist you toward fully diagnosis and possible correction of your Edge's locked steering...

Power Steering - Vehicles With Active Steering - Overview - 2017 Edge UK Workshop Module.pdf Power Steering - Vehicles With Active Steering - System Operation and Component Description - 2017 Edge UK Workshop Manual.pdf Module Configuration - Operation and Description - 2017 Edge UK Workshop Manual.pdf Steering Gear - Removal and Installation - 2017 Edge UK Workshop Manual.pdf Power Steering Control Module (PSCM) - Wiring Diagram - 2017 Edge UK.pdf Active (Adaptive) Steering - Steering Angle & Effort Control Modules - Wiring Diagram - 2017 Edge UK.pdf Battery Junction Box (BJB) - Top View Illustration - Showing Fuse-Relay-Connector Locations - 2017 Edge UK.pdf Battery Junction Box (BJB) - Bottom View Illustration - Showing Fuse-Relay-Connector Locations - 2017 Edge UK.pdf Battery Junction Box (BJB) - High Current Illustration - Showing Protected Circuits & Fuse Locations - 2017 Edge UK.pdf Battery Junction Box (BJB) - Fuse-Circuits Legend 1 - 2017 Edge UK.pdf Battery Junction Box (BJB) - Fuse-Circuits Legend 2 - 2017 Edge UK.pdf BJB-High Current BJB - Location - 2017 Edge UK.pdf Diagnostic Pinpoint Test F - Lost Communication With PSCM Concern - 2017 Edge North America Workshop Manual.pdf EPAS - DTC & Symptoms Charts With Pinpoint Test Titles Listing - 2017 Edge North America Workshop Manual.pdf EPAS Steering Gear - Enhanced Illustration - 2017 Edge UK Workshop Manual.pdf POWER STEERING CONTROL MODULE (PSCM) - Connector 1463A Circuit-Pin Details - 2017 Edge UK.pdf POWER STEERING CONTROL MODULE (PSCM) - Connector 1463B Circuit-Pin Details - 2017 Edge UK.pdf POWER STEERING CONTROL MODULE (PSCM) - Connector 1463B Location - 2017 Edge.pdf

[Haz]

Additional...



Good luck!



Power Steering Control Module (PSCM) - Connector 1463A location, on Steering Gear Assembly - 2017 Edge UK.pdf

[Ryan UK Edge 2017]

Haz



your a diamond I’m just out with the car now I’ve put a battery that tested good on the car and still

presented the same issues I’ve just seen all

The pdf s I’ll download and print these



I’ll be in touch thanks for your support in the issues

[Haz]

Because the earlier repair effort involved the PSCM connector(s), you may want to examine them to ensure they are fully seated on the Steering Gear-mounted Module.



If they are fully seated, disconnect them and inspect for corrosion and/or for any pins that may have become pushed back inside the connector, and which could cause lost communication with the PSCM.



If subsequent scans reveal DTCs involving other modules, let me know here, and I'll provide additional Pinpoint Tests, which may involve checking circuit wiring for shorts or interruptions -- which the past repair efforts may have been pursuing.



Good luck!



Edited October 5 by Haz

[Ryan UK Edge 2017]

24 minutes ago, Haz said:

Because the earlier repair effort involved the PSCM connector(s), you may want to examine them to ensure they are fully seated on the Steering Gear-mounted Module.



If they are fully seated, disconnect them and inspect for corrosion and/or for any pins that may have become pushed back inside the connector, and which could cause lost communication with the PSCM.



If subsequent scans reveal DTCs involving other modules, let me know here, and I'll provide additional Pinpoint Tests, which may involve checking circuit wiring for shorts or interruptions -- which the past repair efforts may have been pursuing.



Good luck!



Haz



when can you fly to the uk lol

[Ryan UK Edge 2017]

Hi Haz



i have printed all And start testing tommrow hopefully



I was unable to see if there’s a part number for new PSCM unit



also do you know if Forscan can read PSCM and possible recode it



thanks again



Ryan

[Haz]

You will need at least a temporarily licensed copy of Forscan to reprogram a new PSCM with the appropriate As-Built data, which you can either copy from the currently installed PSCM, or verify that the PSCM contains the programing values shown in the As-Built Reprograming Data listing that I provided via Forum messaging. If you refer to the Module Configuration Workshop Manual document, the numerical line address for the PSCM will be shown in the table of various modules.



Regarding a PSCM part number, I have not yet been able to find a replacement part number listed. I'm aware that the Steering Gear Removal and Installation Workshop Manual document indicates the PSCM provided with a new Steering Gear assembly must be appropriately programed with As-Built values obtained from the prior PSCM before it is removed. To me, this indicates the PSCM is provided in the assembly (PIA) replacing the faulty Steering Gear. On the other hand, one of the diagnostic procedures indicates "Replace the PSCM" as if the module can be separately obtained and is replaceable on the Steering Gear assembly, but again, I've not found a Service part number for the PSCM.



Working from illustrations and based upon the depicted connector receptacles, I expect the PSCM is located in the area bounded by red arrows here...



etho



The full view of this cropped illustration is zoomable and scrollable using your web browser here.



Neither the UK nor the North American Edge Workshop Manuals include any PSCM removal and installation procedure, which is unusual.



If your diagnostic effort indicates PSCM replacement, then hopefully, inspecting your Edge's Steering Gear may yield a part number stickered or printed on its PSCM, along with some obvious module-mounting fasteners. Lacking Workshop Manual guidance, the question remains of how the PSCM interfaces with the Steering Gear assembly -- unless it's only via the laterally installed harness shown in the Steering Gear illustration, likely containing a C1463A or C1463B connector .



Good luck!



[Ryan UK Edge 2017]

3 hours ago, Haz said:

You will need at least a temporarily licensed copy of Forscan to reprogram a new PSCM with the appropriate As-Built data, which you can either copy from the currently installed PSCM, or verify that the PSCM contains the programing values shown in the As-Built Reprograming Data listing that I provided via Forum messaging. If you refer to the Module Configuration Workshop Manual document, the numerical line address for the PSCM will be shown in the table of various modules.



Regarding a PSCM part number, I have not yet been able to find a replacement part number listed. I'm aware that the Steering Gear Removal and Installation Workshop Manual document indicates the PSCM provided with a new Steering Gear assembly must be appropriately programed with As-Built values obtained from the prior PSCM before it is removed. To me, this indicates the PSCM is provided in the assembly (PIA) replacing the faulty Steering Gear. On the other hand, one of the diagnostic procedures indicates "Replace the PSCM" as if the module can be separately obtained and is replaceable on the Steering Gear assembly, but again, I've not found a Service part number for the PSCM.



Working from illustrations and based upon the depicted connector receptacles, I expect the PSCM is located in the area bounded by red arrows here...



etho



The full view of this cropped illustration is zoomable and scrollable using your web browser here.



Neither the UK nor the North American Edge Workshop Manuals include any PSCM removal and installation procedure, which is unusual.



If your diagnostic effort indicates PSCM replacement, then hopefully, inspecting your Edge's Steering Gear may yield a part number stickered or printed on its PSCM, along with some obvious module-mounting fasteners. Lacking Workshop Manual guidance, the question remains of how the PSCM interfaces with the Steering Gear assembly -- unless it's only via the laterally installed harness shown in the Steering Gear illustration, likely containing a C1463A or C1463B connector .



Good luck!



Thanks Haz



yes im glad to here that it’s not just me that cannot locate the data on PSCM location or part number I may call ford to ask for the part detail I’ve got enough data from yourself to proced



I paid for full forscan for a year and have the plug in obd switch required so will try with forscan to scan the PSCM

[Ryan UK Edge 2017]

Hi Haz



hope your well

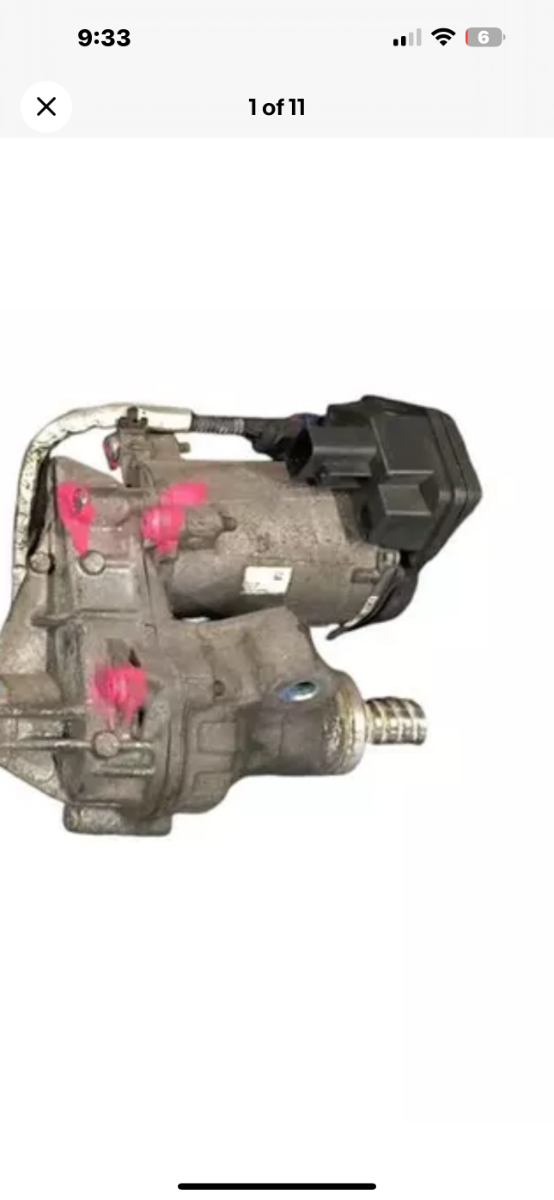

immthinking that’s black box ontop

of the gear/ motor may be the PSCM module

unit

[Haz]

I agree, and I too, just found 2017 Edge Steering Gear photos...









I also found a possible PSCM part number on a VIN-specific report, via Ford's UK Professional Technician System (PTS) website: F1GC-3F964-BA. It is possible that then current Service replacement has a different part number, so consulting with your local Ford Works dealer is necessary.



Just for awareness, you could verify the part number, cost and availability, though the only DTC thus far is no communication -- which can involve connector, wiring, ground faults.



If a DTC for internal failure of the module was present, it would be clear-cut that investing in a new PSCM is the right option -- presuming it's available apart from the Steering Gear assembly.



I'll supply that VIN-specific report to you via Forum messaging.



Good luck!



[Ryan UK Edge 2017]

Thank you sir



for Your ongoing support on my issue



I will as the Machanic to

access the rack check connections for damage , water ingress etc



I’ll have my laptop with forscan for Tuesday day and I’ll look at what the software can tell me I’ll speak with the dealer tomorrow also



thanks



Haz

[Ryan UK Edge 2017]

The part number hardley returns any replacement parts so may be a superseded part also

[Ryan UK Edge 2017]

Is there anyone on forum

that would have a clue how ro

possibley disengage - bypass the steering lock to release it so I can move the car it starts drives but steering lock is locked on so only can go back

or forwards till I can figure out this module issue



surely it’s engaged electronically



please someone must know a work around

[Haz]

From the 2017 Edge UK Workshop Manual...



System Diagram - Steering Column Lock (if equipped)



Network Message Chart - Steering Column Lock (if equipped)

  BCM Network Input Messages



Broadcast Message	Originating Module	Message Purpose
Engine rpm data	PCM	Provides the BCM with the engine speed to indicate if the engine is running or not.
Wheel rotation count	ABS module	Provides the BCM with the vehicle speed to indicate if the vehicle is moving or stationary.

Steering Column Lock (if equipped)

The steering column lock is used to deter vehicle theft by electronically locking the steering column. This prevents the steering wheel from being rotated to turn the front wheels.



The steering column unlocks when:

• the passive entry feature is used to open the driver door.
• the driver door is opened after unlocking the vehicle with a RKE transmitter.
• the START/STOP button is pressed and a valid programmed passive key is detected.
• the remote start feature is activated.



The steering column locks after:

• the ignition is turned off and 45 seconds have elapsed since the delayed accessory feature has turned off.
• 45 seconds have elapsed since the remote feature turned off the vehicle.



The BCM controls the voltage provided to the steering column lock module using a relay (located in the BJB ) and communicates with it over a LIN .



The BCM monitors inputs from various systems to determine when to send a command to lock or unlock the steering column. The steering column lock module locks and unlocks the steering column as directed by commands received from the BCM .



If the BCM detects a fault from the steering column lock module or the LIN , the BCM prevents the vehicle from starting.



The BCM does not provide power to the steering column lock module when the vehicle is moving or the engine is running.



Steering Column Lock Messages (if equipped)

The message center displays a message when the BCM detects a fault from the steering column lock module.



The "Steering Malfunction" message displays when a fault with the electronic steering column lock system is present and must be diagnosed.



The "Turn the wheel while starting" message displays when the steering column lock module is unable to unlock the steering column because of a high amount of torque against the lock (such as when the wheels are against a curb when the vehicle is shut off). The torque against the steering column lock must be relieved for the steering column to unlock.



Turn the vehicle off, rotate and hold the steering wheel in one direction while turning the vehicle on. If the message displays again, turn the vehicle off, rotate and hold the steering wheel in the other direction while turning the vehicle on.



Component Description



Steering Column Lock Module (if equipped)

The steering column lock module locks and unlocks the steering column based on commands received from the BCM . The steering column lock module monitors the position of the steering column lock and, if a fault is detected, reports the failure to the BCM .



When the steering column lock module is replaced, the BCM must configured/trained to the new steering column lock module for the steering column lock module to operate correctly.



The BCM sets a DTC if a fault is detected with the steering column lock module. Additionally, if the BCM is not configured to the steering column lock module, the steering column module keeps the column locked, a programming and/or configuration DTC sets and the vehicle does not start.



  BCM DTC Chart



DTC	Description	Action
B1026:04	Steering Column Lock: System Internal Failure	DIAGNOSE all other Diagnostic Trouble Codes (DTCs) present. If no other Diagnostic Trouble Codes (DTCs) are present, INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:05	Steering Column Lock: System Programming Failure	CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:09	Steering Column Lock: Component Failure	INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:49	Steering Column Lock: Internal Electronic Failure	INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:51	Steering Column Lock: Not Programmed	CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:56	Steering Column Lock: Invalid / Incompatible Configuration	CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:77	Steering Column Lock: Commanded Position Not Reachable	INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:87	Steering Column Lock: Missing Message	GO to Pinpoint Test L
B1026:92	Steering Column Lock: Performance or Incorrect Operation	GO to Pinpoint Test L
B1026:93	Steering Column Lock: No Operation	DIAGNOSE all other Diagnostic Trouble Codes (DTCs) present. If no other Diagnostic Trouble Codes (DTCs) are present, INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).
B1026:96	Steering Column Lock: Component Internal Failure	INSTALL a new steering column lock module. REFER to: Steering Column Lock Module (211-05 Steering Wheel and Column Electrical Components, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).





PINPOINT TEST L: THE STEERING COLUMN IS ALWAYS OR NEVER LOCKED (IF EQUIPPED)

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.L1 CHECK FOR VOLTAGE TO THE STEERING COLUMN LOCK MODULE

• Ignition OFF.

• Disconnect Steering Column Lock Module C2434.

• Ignition ON.

• Measure:



  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 2		Ground




Is the voltage greater than 11 volts?


Yes

GO to L4

No	VERIFY BJB fuse 48 (15A). If not OK, REFER to the Wiring Diagrams manual to identify the possible causes of the circuit short. If OK, GO to L2

L2 CHECK THE STEERING COLUMN LOCK MODULE RELAY COIL CONTROL CIRCUIT FOR AN OPEN

• Ignition OFF.

• Disconnect BJB C1035A.

• Disconnect BCM C2280C.

• Measure:



  Positive Lead	Measurement / Action	Negative Lead
  C1035A Pin 33		C2280C Pin 9




Is the resistance less than 3 ohms?


Yes

GO to L3

No	REPAIR the circuit.

L3 CHECK THE STEERING COLUMN LOCK MODULE RELAY VOLTAGE SUPPLY CIRCUIT FOR AN OPEN

• Ignition OFF.

• Measure:



  Positive Lead	Measurement / Action	Negative Lead
  C1035A Pin 41		C2434 Pin 2




Is the resistance less than 3 ohms?


Yes	INSTALL a new BJB relay module.

No	REPAIR the circuit.

L4 CHECK THE STEERING COLUMN LOCK MODULE VOLTAGE SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE

• Disconnect BJB C1035A.

• Ignition ON.

• Measure:



  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 2		Ground




Is any voltage present?


Yes	REPAIR the circuit.

No

GO to L5

L5 CHECK THE STEERING COLUMN LOCK MODULE GROUND CIRCUIT FOR AN OPEN

• Ignition OFF.

• Measure:

  Click to display connectors

  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 3		Ground




Is the resistance less than 3 ohms?


Yes

GO to L6

No	REPAIR the circuit.

L6 CHECK THE STEERING COLUMN LOCK MODULE LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR A SHORT TO VOLTAGE

• Disconnect BCM C2280G.

• Ignition ON.

• Measure:

  Click to display connectors

  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 4		Ground




Is any voltage present?


Yes	REPAIR the circuit.

No

GO to L7

L7 CHECK THE STEERING COLUMN LOCK MODULE LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR A SHORT TO GROUND

• Ignition OFF.

• Measure:

  Click to display connectors

  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 4		Ground




Is the resistance greater than 10,000 ohms?


Yes

GO to L8

No	REPAIR the circuit.

L8 CHECK THE STEERING COLUMN LOCK MODULE LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR AN OPEN

• Measure:

  Click to display connectors

  Positive Lead	Measurement / Action	Negative Lead
  C2434 Pin 4		C2280G Pin 25




Is the resistance less than 3 ohms?


Yes

INSTALL a new steering column lock module. CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures). TEST the system for normal operation. If the concern is still present, GO to L9

No	REPAIR the circuit.

L9 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

• Disconnect and inspect all BCM connectors.

• Repair:
  • corrosion (install new connector or terminals - clean module pins)
  • damaged or bent pins - install new terminals/pins
  • pushed-out pins - install new pins as necessary

• Reconnect the BCM connectors. Make sure they seat and latch correctly.

• Operate the system and determine if the concern is still present.

Is the concern still present?


Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM . REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation). CARRY OUT the BCM to ESCL (Electronic Steering Column Lock Training) procedure. REFER to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System, General Procedures).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.



Link to zoomable/scrollable exploded view illustration in below part-listing for LH Drive North American Edge, where green component is the module, to assist you toward locating its connector C2434 ...





Relevant Workshop Manual, Wiring & Connector information attached below as PDF documents.



Good luck!



Diagnostic Pinpoint Test L - Steering Column Is Always or Never Locked - 2017 Edge NA Workshop Manual.pdf Steering Column Lock Module - Connector C2434 Location - 2017 Edge UK.pdf Steering Column Lock Module - Wiring Diagram - 2017 Edge UK.pdf Steering Column Lock Module - Power Distribution Wiring Diagram - 2017 Edge UK.pdf Steering Column Lock Module - Connector C2434 Pin-Circuit Details - 2017 Edge UK.pdf BATTERY JUNCTION BOX (BJB) - Connector C1035A Pin-Circuit Details - 2017 Edge.pdf BODY CONTROL MODULE (BCM) - Connector C2280C Pin-Circuit Details - 2017 Edge.pdf BODY CONTROL MODULE (BCM) - Illustration Showing Connector C2280C Location - 2017 Edge.pdf

Edited October 8 by Haz

[Haz]

Just in case removing the Steering Column trim shroud is necessary to access Connector C2434.



In this UK Edge Workshop Manual section, LH Drive is pictured, RH Drive similar, attached below as PDF document...



Good luck!



Steering Column Shrouds - Removal and Installation - 2017 Edge UK Workshop Manual.pdf

[Ryan UK Edge 2017]

Hello HAZ



Hope you are well I have been working night shift for 4 nights progress has been slow ill

Be Back on board from today



I check the bottom

fuse box all tested ok

Just tested

F1
F2
F3
F4
F5
F6
F7
F8
In the bottom high voltage box all tested ok



I have done a few module resets using forscan on

Module reboot SECM

Module reboot SCCM

Module reboot SASM



id like to share so screen grabs of the forscan DTCs

[Ryan UK Edge 2017]

Hey Haz



Can I send them screen shots of forscan via a messaging service messenger WhatsApp

[Ryan UK Edge 2017]





[Ryan UK Edge 2017]



this is my issue likely just gonna order a rack
