TSB 24-2263 - 2023 Nautilus + 2024 Edge - 08/28/2023 through 04/02/2024 Build Dates - 2.0L EcoBoost - Illuminated MIL With DTCs P0401 Or P2457 And/Or Various Engine Cooling System Symptoms From Transmission Fluid Heater Coolant Control Valve Blockage

[Haz]

TECHNICAL SERVICE BULLETIN 2.0L EcoBoost - Illuminated MIL With DTCs P0401 Or P2457 And/Or Various Engine Cooling System Symptoms From Transmission Fluid Heater Coolant Control Valve Blockage - Built On 28-Aug-2023 And Through 02-Apr-2024	24-2263 26 August 2024

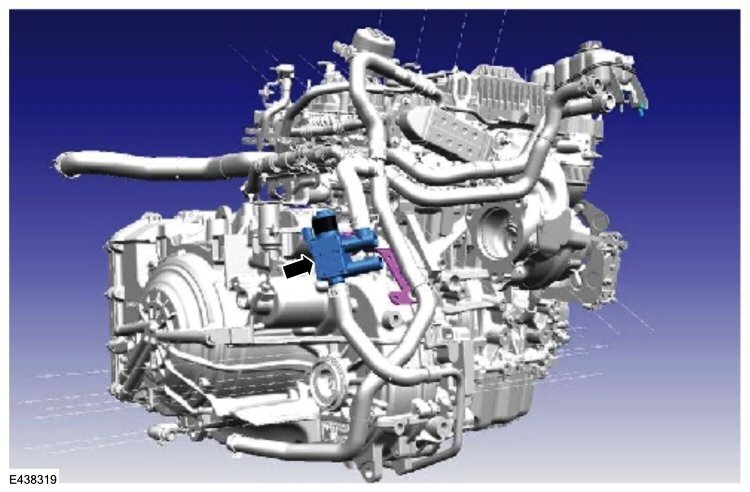

Model: Ford 2024 Edge Vehicle built on 28-Aug-2023 and through 02-Apr-2024 Engine: 2.0L EcoBoost Lincoln 2023 Nautilus Vehicle built on 28-Aug-2023 and through 02-Apr-2024 Engine: 2.0L EcoBoost   Markets: North American markets only   Issue: Some 2024 Edge and 2023 Nautilus vehicles built on 28-Aug-2023 and through 02-Apr-2024 equipped with a 2.0L EcoBoost engine may experience an illuminated MIL with DTC P0401 or P2457. Various engine cooling system symptoms which may include an internal/external leak, white smoke from the tailpipe, and/or over-temperature warnings may also be present. This may be due to a transmission fluid heater coolant control valve restricting flow and possibly causing the EGR cooler to crack. To correct the condition, follow the Service Procedure to replace the affected parts.   Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:   • One of the following vehicles: - 2024 Edge - 2023 Nautilus   • Vehicle built on 28-Aug-2023 and through 02-Apr-2024 • 2.0L EcoBoost engine • Illuminated MIL with DTCs P0401 or P2457 • Various engine cooling system symptoms which may include an internal/external leak, white smoke from the tailpipe, and/or over-temperature warnings   Parts Service Part Number Claim Quantity Package Order Quantity Number in Package Description K2GZ-9F464-B 1 1 1 EGR Cooler (Includes Gaskets) K2GZ-18495-B 1 1 1 Transmission Fluid Heater Coolant Control Valve   Parts - Parts To Inspect And Replace Only If Necessary Service Part Number Claim Quantity Package Order Quantity Number in Package Description K2GZ-6758-H Only If Necessary (1 Possible) Only If Necessary (1 Possible) 1 Crankcase Ventilation Tube XL-2 Only If Necessary Only If Necessary   Motorcraft® High Temperature Nickel Anti-Seize Lubricant ZC-37-A Only If Necessary Only If Necessary   Motorcraft® Wheel and Tire Cleaner XG-3-A Only If Necessary Only If Necessary   Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound VC-13-G Only If Necessary Only If Necessary   Motorcraft® Yellow Concentrated Antifreeze/Coolant (All Markets Except Canada) CVC-13-G Only If Necessary Only If Necessary   Motorcraft® Yellow Concentrated Antifreeze/Coolant (Canada Only)   Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Emissions Warranty/Service Part Warranty (SPW)/Service Part New Vehicle (SPNV)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/Emissions Warranty/SPW/SPNV/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.   Labor Times Description Operation No. Time 2023 Nautilus, 2024 Edge 2.0L EcoBoost: Replace The Transmission Fluid Heater Coolant Control Valve And The EGR Cooler (Do Not Use With Any Other Labor Operations) 242263A 3.3 Hrs.   Repair/Claim Coding Causal Part: 18495 Condition Code: 55   Service Procedure 1. Replace the transmission fluid heater coolant control valve. Refer to WSM, Section 303-03A. (Figure 1) Figure 1 2. Replace the EGR cooler. Refer to WSM, Section 303-08A.   © 2024 Ford Motor Company All rights reserved. NOTE: The information in Technical Service Bulletins is intended for use by trained, professional technicians with the knowledge, tools, and equipment to do the job properly and safely. It informs these technicians of conditions that may occur on some vehicles, or provides information that could assist in proper vehicle service. The procedures should not be performed by "do-it-yourselfers". Do not assume that a condition described affects your car or truck. Contact a Ford or Lincoln dealership to determine whether the Bulletin applies to your vehicle. Warranty Policy and Extended Service Plan documentation determine Warranty and/or Extended Service Plan coverage unless stated otherwise in the TSB article. The information in this Technical Service Bulletin (TSB) was current at the time of printing. Ford Motor Company reserves the right to supersede this information with updates. The most recent information is available through Ford Motor Company's on-line technical resources.





Attached below as PDF documents are this TSB and the two above-referenced Workshop Manual sections...



Exhaust Gas Recirculation (EGR) Cooler - Removal and Installation - 2022-2023 Nautilus Workshop Manual.pdf TSB 24-2263 - 2023 Nautilus, 2024 Edge - 2.0L EcoBoost - Illuminated MIL With DTCs And-Or Various Engine Cooling System Symptoms - 08-28-2023 to 04-02-2024.pdf Transmission Fluid Heater Coolant Control Valve - Removal and Installation - 2022-2023 Nautilus Workshop Manual.pdf
