Ford2504x4 Posted June 16 Report Share Posted June 16 (edited) Hi, So I have read the threads on this issue, and did the following testing. 1, tested the main switch, all working with the meter. both sides of all switches work up/down etc . Window lock switch included Power mirror, door locks work 2, checked the following fuses on drivers fuse panel , 1, 3, 15, and the big silver fuse, all are good I think 3, check for continuity of the blue wire from the harness drivers door to the window switch blue , it is good, 4 checked blue wire continuity though the plug, pin to pin is good, no broken wire . 5, applied 12v pwr to the blue wire door side, and windows work as they should. 6, no pwr from the car side from the blue wire. <---!!!! This is the issue I am chasing , and the harness does have pwr from other wires . 7.checked under the hood pwr box ,all fuses good. Rinse and repeated all steps 3 times , still nothing . TopDon code reader shows nothing although I am may not be looking in the right place on the scan tool Watched a few video's and did some searching but found nothing on where to check for. And ideas ? Edited June 16 by Ford2504x4 1 Quote Link to comment Share on other sites More sharing options...
Ford2504x4 Posted June 16 Author Report Share Posted June 16 I just found this reference to a power roof issue , I do not have prw roof REFER to Section 501-11 to diagnose the inoperative power windows (accessory delay relay circuit Does anyone have this ? 1 Quote Link to comment Share on other sites More sharing options...

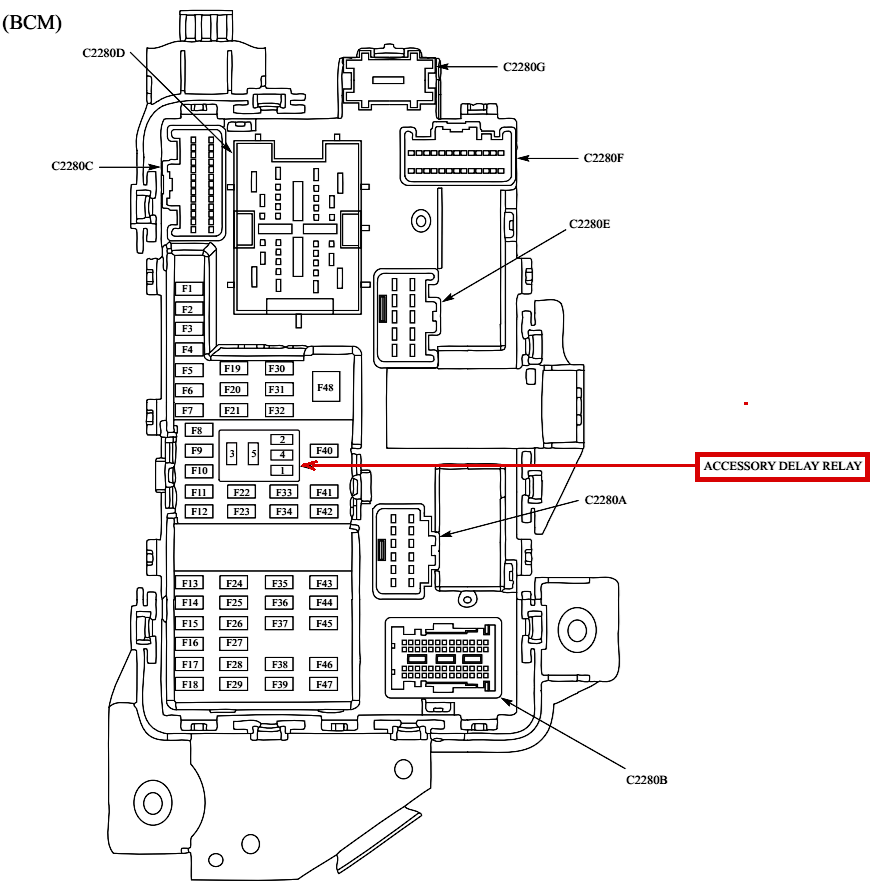

Haz Posted June 17 Report Share Posted June 17 (edited) From the 2011 Edge Workshop Manual and Wiring Resource, posted here and also attached below as PDF documents... Pinpoint Test L: The Delayed Accessory is Inoperative Normal Operation The accessory delay relay is located in the Body Control Module (BCM) . When the ignition is in the ON position, the BCM activates the accessory delay relay by grounding the relay coil. When the ignition is turned to the OFF position, the BCM continues to ground the accessory delay relay coil for approximately 10 minutes, or until a front door is opened. When the accessory delay relay is active, it supplies voltage to the power window system. DTC B131A:12 (Delayed Accessory Power: Circuit Short To Battery) — sets when the BCM senses a short to voltage on the accessory delay relay control circuit. DTC B131A:14 (Delayed Accessory Power: Circuit Short To Ground or Open) — sets when the BCM senses an open or short to ground on the accessory delay relay control circuit. This pinpoint test is intended to diagnose the following: Door ajar switches Accessory delay relay BCM PINPOINT TEST L : THE DELAYED ACCESSORY IS INOPERATIVE NOTICE: Use the correct probe adapter(s) from the Flex Probe Kit when making measurements. Failure to use the correct probe adapter(s) may damage the connector. L1 CHECK FOR CORRECT OPERATION OF THE DOOR AJAR SWITCHES Open and close the front doors. Verify the interior lights turn on when the doors are open, and off when the doors are closed. Do the interior lights operate normally? Yes GO to L2. No REFER to Section 417-02 to diagnose the interior lighting and door ajar switches. L2 CHECK THE ACCESSORY DELAY RELAY Carry out the accessory delay relay component test. Did the accessory delay relay pass the component test? Yes GO to L3. No INSTALL a new accessory delay relay. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation. L3 CHECK FOR CORRECT BCM OPERATION Disconnect all BCM connectors. Check for: corrosion. pushed-out pins. Connect all BCM connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present? Yes INSTALL a new BCM . REFER to Section 419-10 for the removal and installation procedure. TEST the system for normal operation. No The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation. Good luck! Power Window, Left Front - Wiring Diagram - 2011 Edge.pdf Window Motor Initialization - General Procedures - 2011 Edge Workshop Manual.pdf Master Window Adjust Switch - Component Testing Procedure - 2011 Edge.pdf Window Adjust Switch - Component Testing Procedure - 2011 Edge.pdf Body Control Module (BCM) - Illustration showing Accessory Delay Relay location - 2011 Edge.pdf Accessory Delay Relay, 5-Terminal - Component Testing Procedure - 2011 Edge.pdf Glass, Frames and Mechanisms - Diagnosis and Testing - 2011 Edge Workshop Manual.pdf Edited June 17 by Haz 1 Quote Link to comment Share on other sites More sharing options...
Ford2504x4 Posted June 17 Author Report Share Posted June 17 (edited) Thank you @Haz . Edited June 17 by Ford2504x4 1 Quote Link to comment Share on other sites More sharing options...
Ford2504x4 Posted June 17 Author Report Share Posted June 17 Okay the relay is bad, to make sure ,I jumped terminals #3 & #5 in the fuse box and the windows work. Off to buy new relay. 1 Quote Link to comment Share on other sites More sharing options...
