Rlahnan0121 Posted May 11 Report Share Posted May 11 Just purchased a a 19 edge. The rear washer fluid isn't spraying g the back window. I've checked the pump it is working, disconnected the line in the rear hatch near the nozzle and I'm getting fluid there. I blew air through the nozzle itself and getting air through it fine so its not clogged. What am I missing? Any help is appreciated Quote Link to comment Share on other sites More sharing options...
Haz Posted May 11 Report Share Posted May 11 Welcome to the Forum, @Rlahnan0121! Relevant sections from the 2019 Edge Workshop Manual and Wiring resource are attached below as PDF documents... By reviewing the documents, you'll find that your Edge's single Washer Fluid Pump feeds both the Windshield washer jets and the Rear Glass washer jets by reversing its rotation to serve one set or the other set of washer jets, via a relay in the Windshield Wiper Motor and an unserviceable Rear Washer Relay in the Battery Junction Box (BJB). If you are capable with an electrical test light and Volt-Ohm Meter, it will be worthwhile for you -- or a professional technician -- to perform the diagnostic step-by-step of Pinpoint Test L toward determining the root cause of your Edge's rear washer performance issue. Good luck! Link to this page on Ford's online parts-selling site, FordParts.com Rear Washer Relay - Wiring Diagram - 2019 Edge.pdf Diagnostic Testing Procedure - Pinpoint Test L - THE REAR WINDOW WASHER IS INOPERATIVE - 2019 Edge.pdf Wipers and Washers - System Operation and Component Description - 2019 Edge Workshop Manual.pdf WINDSHIELD WASHER PUMP - Connector C137 Details - 2019 Edge.pdf WINDSHIELD WASHER PUMP - Connector C137 Location - 2019 Edge.pdf BATTERY JUNCTION BOX (BJB) - Connector C1035B Details - 2019 Edge.pdf BATTERY JUNCTION BOX (BJB) - Connector C1035B Location - 2019 Edge.pdf BATTERY JUNCTION BOX (BJB) - Illustration Showing F3, F28, Connector C1035B Locations - 2019 Edge.pdf BATTERY JUNCTION BOX (BJB) - Illustration Showing F3, F28, Connector C1035B Locations - 2019 Edge.pdf BATTERY JUNCTION BOX (BJB) - Fuse-Relay Listing (Partial) - 2019 Edge.pdf Windshield Washer Pump - Removal and Installation - 2019 Edge Workshop Manual.pdf Fender Splash Shield - Removal and Installation - 2019 Edge Workshop Manual.pdf 2 Quote Link to comment Share on other sites More sharing options...

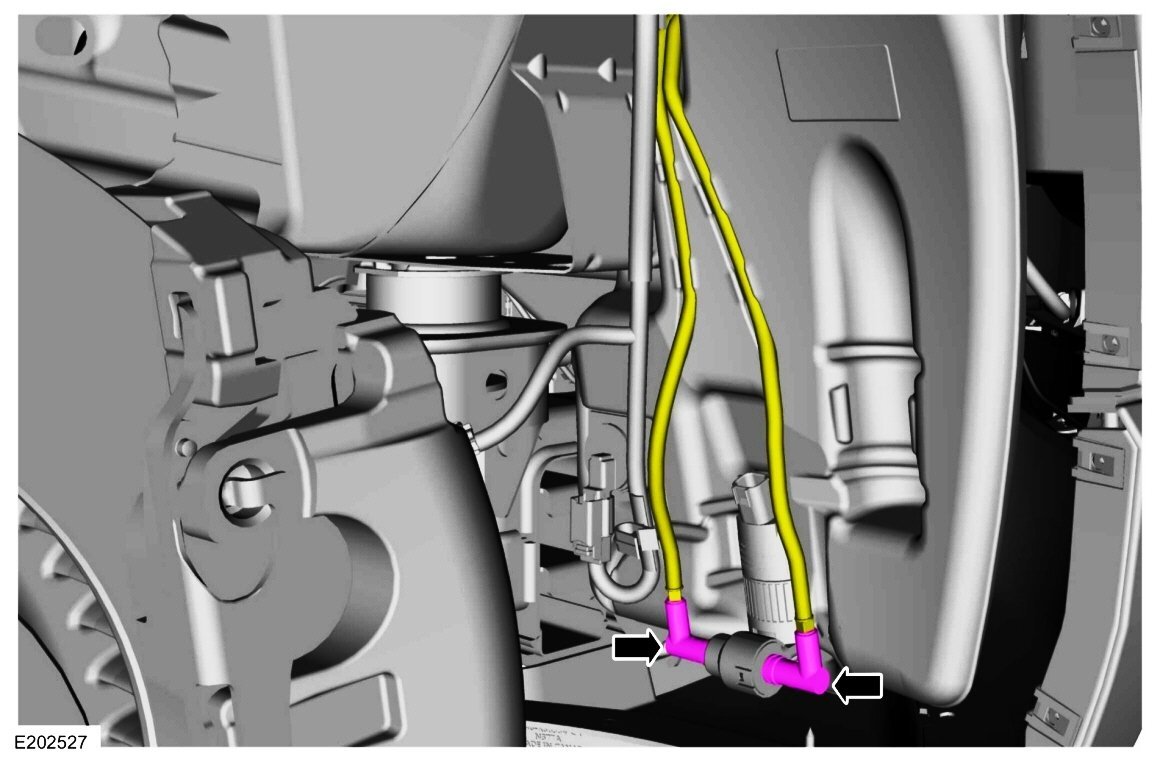

Haz Posted May 17 Report Share Posted May 17 Additional related Workshop Manual PDF documents attached below... Good luck! Washer Hose Coupling - General Procedures - 2019 Edge Workshop Manual.pdf Washer Hose Repair - General Procedures - 2019 Edge Workshop Manual.pdf 2 Quote Link to comment Share on other sites More sharing options...
Rlahnan0121 Posted May 19 Author Report Share Posted May 19 Finally found the problem. Short story is the rear passenger floor was filling up with washer fluid. I found where the hose when it bends to go up from the floor to under the rear seat the hose was worn through. I ended up cutting out the bad section and splicing it with 3/16 brake line. I'm sure I'm not the first and only person that will have this problem. 2 Quote Link to comment Share on other sites More sharing options...
