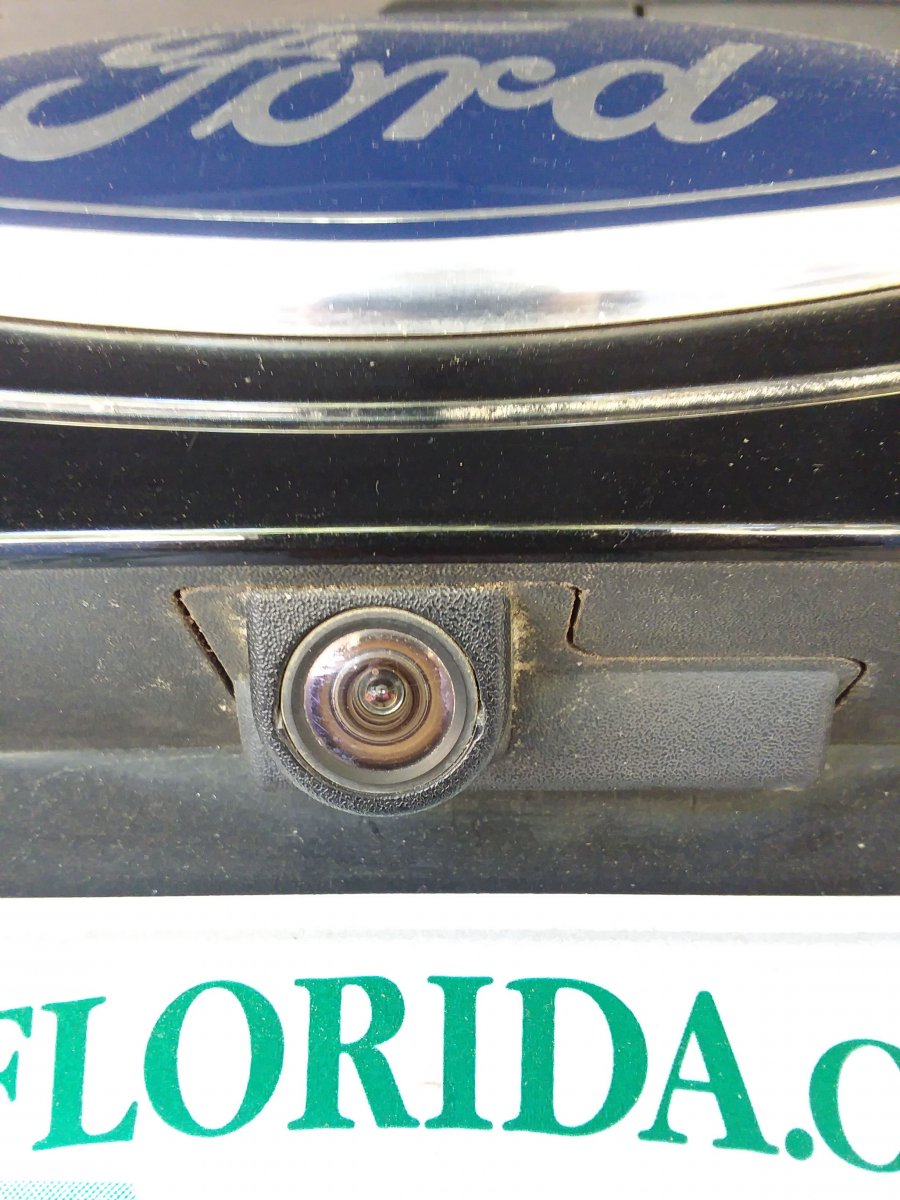

gonesail Posted April 18, 2023 Report Share Posted April 18, 2023 (edited) we own a 2011 ford edge SEL with backup camera that looks to be non standard. I was getting ready to replace it and noticed that my camera does not look like the one that is recommended for my vehicle. After taking a closer look .. I think it is standard .. I was looking at it from the wrong angle. Edited April 18, 2023 by gonesail Quote Link to comment Share on other sites More sharing options...
Haz Posted April 18, 2023 Report Share Posted April 18, 2023 (edited) At first glance, I was inclined to agree, but it's really the standard camera assembly. From the 2011 Workshop Manual... Video Camera - Removal and Installation Edge Removal Edge Remove the rear liftgate applique. For additional information, refer to Section 501-08. [See Document download links>, below...] Carefully remove the name plate from the rear liftgate applique and discard. Drill a 6.35 mm (0.25 in) hole through the rear lift gate applique as indicated. A: measure down 3.175 mm (0.125 in) from the left side embossed edge. B: measure over 6.35 mm (0.25 in) from the left side embossed edge. Loosen the rear video camera bracket screw (T-20) through the access hole. Remove the rear video camera bracket and the rear video camera. Disconnect the electrical connector. Installation Edge Install the rear video camera and install the rear video camera bracket. Connect the electrical connector. Tighten the rear video camera bracket screw through the access hole. Cut a piece of mylar tape (19E523) 12.7 mm (0.5 in) long and cover the access hole. Install a new name plate onto the rear liftgate applique. Install the rear liftgate applique. For additional information, refer to Section 501-08. [See Document download links>, below...] NOTE: If the camera was replaced, the rear video camera guidelines will not display if the rear video camera is not configured. Configure the rear video camera following the instructions on the scan tool. Document download links> Video Camera - Removal and Installation - 2011 Edge-MKX Workshop Manual.pdf Applique — Liftgate - Removal and Installation - 2011 Edge Workshop Manual.pdf Liftgate Trim Panel - Removal and Installation - 2011 Edge Workshop Manual.pdf Liftgate Trim Panel - Page 1 Enhanced Illustration - 2011 Edge Workshop Manual.pdf From Ford's parts-selling website (link to page)... If you'd prefer replacing your faulty camera with a used part, instead of new, you could try using the Car-Part.com salvage yard search engine... Pricing for a used replacement backup camera in my area ranges from $135-to-$250. Good luck! Edited April 18, 2023 by Haz 2 Quote Link to comment Share on other sites More sharing options...
dabangsta Posted April 18, 2023 Report Share Posted April 18, 2023 Dorman and others also have aftermarket replacements for ~$150 as well. I had decent luck with a Dorman replacement on a Fusion, it lasted longer than the factory one. 2 Quote Link to comment Share on other sites More sharing options...
