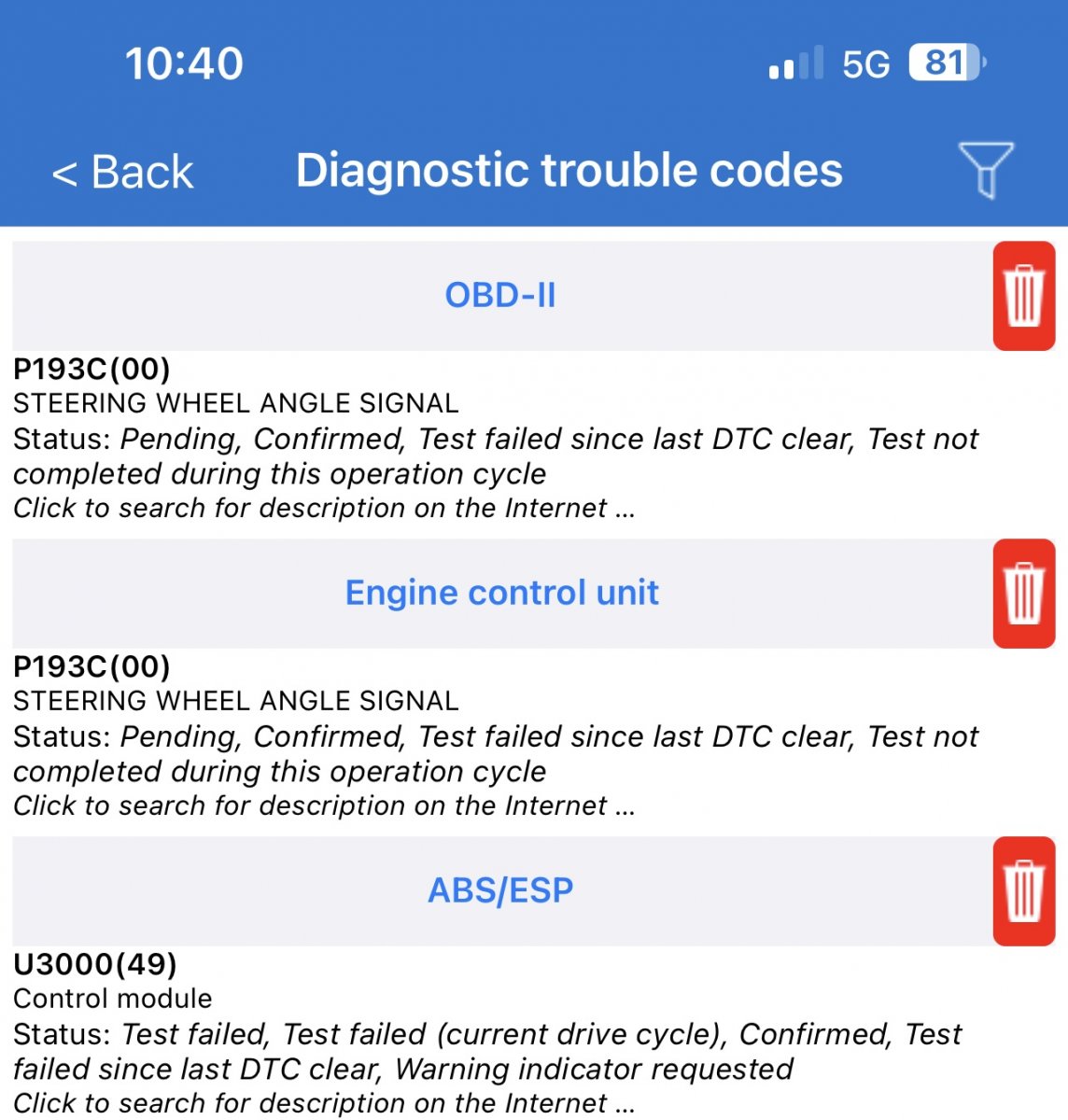

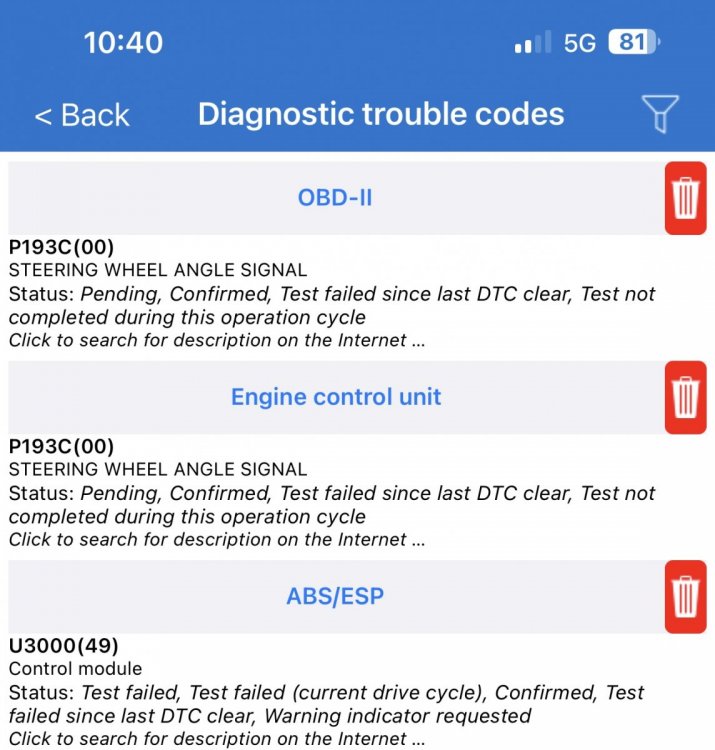

Justin400 Posted March 30, 2023 Report Share Posted March 30, 2023 Brake lights and diagnostic code pull. This started happening after I had an alignment done. I took it back and they said nothing was wrong. 3 months later the error message is populating again on the console. Not sure what it could be? I just have a hard time is the steering angle sensor. Quote Link to comment Share on other sites More sharing options...

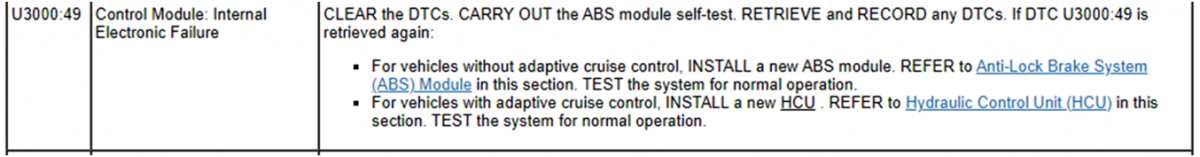

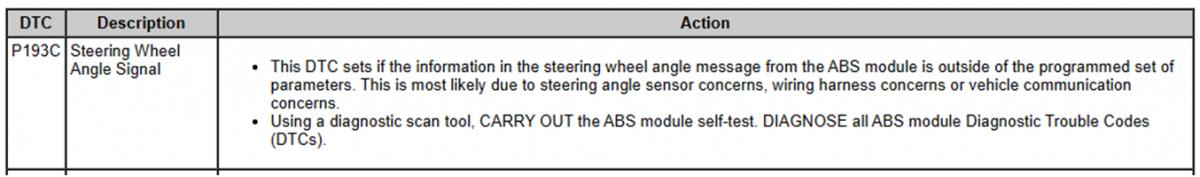

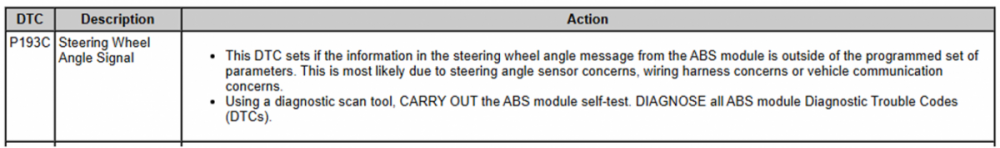

Haz Posted March 30, 2023 Report Share Posted March 30, 2023 From the 2014 Edge Workshop Manual... Document download links Anti-Lock Brake System (ABS) Module - Removal and Installation - 2014 Edge Workshop Manual.pdf Hydraulic Control Unit (HCU) - Removal and Installation - 2014 Edge Workshop Manual.pdf Hydraulic Control Unit (HCU) - Removal and Installation - Enhanced Page 2 Illustration - 2014 Edge Workshop Manual.pdf Module Configuration (Less Non-Applicable DTC Chart) - 2014 Edge Workshop Manual.pdf Programmable Module Installation (PMI) - General Procedures - 2014 Edge Workshop Manual.pdf Good luck! 2 Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted April 1, 2023 Report Share Posted April 1, 2023 As this occurred after an alignment, I'd suspect they may have accidentally pinched or damaged a wiring harness. Quote Link to comment Share on other sites More sharing options...
Will2U Posted April 2, 2023 Report Share Posted April 2, 2023 Doesn't the steering angle sensor need to be re-calibrated after a front end alignment? Quote Link to comment Share on other sites More sharing options...
Haz Posted April 2, 2023 Report Share Posted April 2, 2023 (edited) Front and rear alignment procedures in the 2014 Edge Workshop make no mention of need to recalibrate any modules or sensors, and the Steering Sensor's description indicates its function measures direction and angle of Steering Wheel rotation only (with emphasis added). Steering Sensor The steering wheel rotation sensor uses an optical sensor and a slotted wheel to measure the rate of rotation (angle) of the steering wheel. The steering wheel rotation sensor uses the HS-CAN to transmit information to the ABS module about steering wheel turning direction (left or right) and how far the steering wheel is being turned. The steering wheel rotation sensor does not indicate the absolute position of the steering wheel relative to straight-ahead. The ABS module learns this position by comparing the steering wheel position with other signals and storing the position it has learned. The module confirms this position and modifies it as necessary during every new driving cycle. Document download links> Steering Wheel Rotation Sensor - Removal and Installation - 2014 Edge Workshop Manual.pdf Steering Column Control Module (SCCM) - Removal and Installation - 2014 Edge Workshop Manual.pdf Anti-Lock Control - Diagnosis and Testing - 2014 Edge Workshop Manual.pdf Will2U, you're probably rightfully recalling that following front or rear Toe Adjustment, beginning with 2015 Edges, GEN 2 vehicles equipped with the Lane Departure Warning (LDW) System require the camera alignment procedure to be performed on the vehicle's Image Processing Module A (IPMA) using a scan tool. Good luck! Edited April 2, 2023 by Haz 1 1 Quote Link to comment Share on other sites More sharing options...
