From the 2019 Edge Workshop Manual...



2.0L EcoBoost - Fuel Pump Driver Module (FPDM) - Removal and Installation

Removal

NOTE: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side.

  1. With the vehicle in NEUTRAL, position it on a hoist.

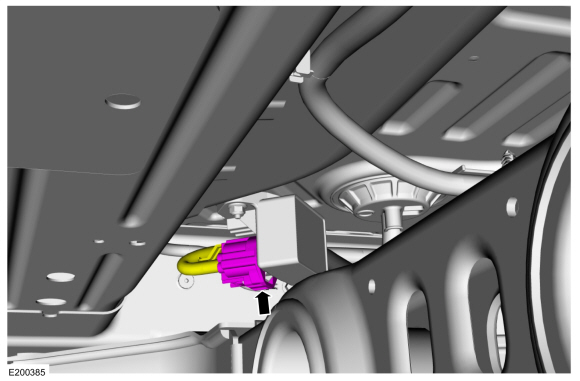

  1. Disconnect the fuel pump driver module electrical connector.
imagen2.dll?id=E200385_EUR&w=580&t=JPG

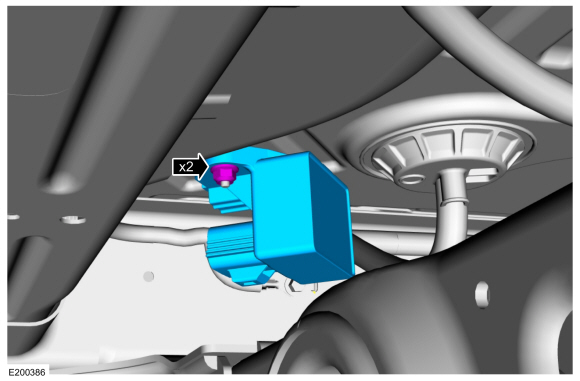

  1. Remove the fuel pump driver module nuts, then remove the fuel pump driver module.
imagen2.dll?id=E200386_EUR&w=580&t=JPG







Installation

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.
    Torque: 36 lb.in (4.1 Nm)
imagen2.dll?id=E200386_EUR&w=580&t=JPG






  1. Connect the fuel pump driver module electrical connector.
imagen2.dll?id=E200385_EUR&w=580&t=JPG













2.7L EcoBoost - Fuel Pump Driver Module (FPDM)- Removal and Installation
Removal

NOTE: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side.

  1. With the vehicle in NEUTRAL, position it on a hoist.

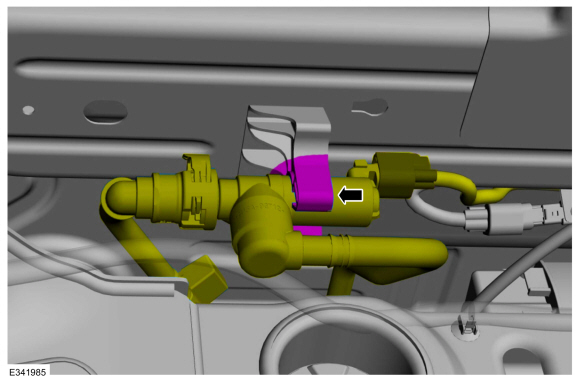

  1. Position aside the EVAP blocking valve and hoses.
imagen2.dll?id=E341985_EUR&w=580&t=JPG

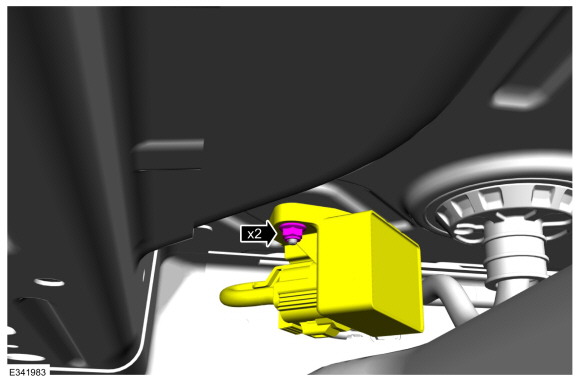

  1. Remove the fuel pump driver module nuts.
imagen2.dll?id=E341983_EUR&w=580&t=JPG

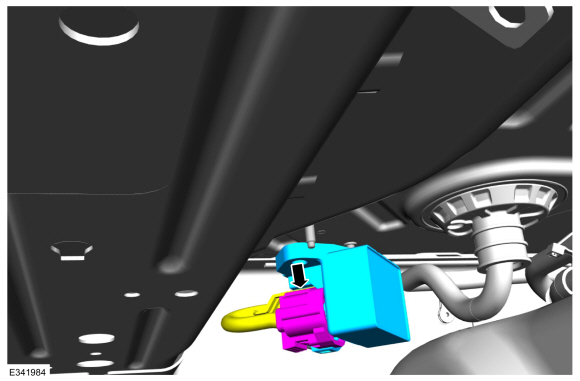

  1. Disconnect the electrical connector, then remove the fuel pump driver module.
imagen2.dll?id=E341984_EUR&w=580&t=JPG







Installation

  1. Connect the fuel pump driver module electrical connector.
imagen2.dll?id=E341984_EUR&w=580&t=JPG






  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.
    Torque: 36 lb.in (4.1 Nm)
imagen2.dll?id=E341983_EUR&w=580&t=JPG






  1. Position back the EVAP blocking valve and hoses.
imagen2.dll?id=E341985_EUR&w=580&t=JPG











2.0L EcoBoost - Fuel Pump and Sender Unit- Removal and Installation

Special Tool(s) / General Equipment

imagen2.dll?id=E80148&w=99&t=JPG 310-123
Locking Ring, Fuel Tank
TKIT-2004J-F
TKIT-2005U-LM

Removal

All vehicles

  1. NOTE: Removal steps in this procedure may contain installation steps.

    Remove the fuel tank.
    Refer to: Fuel Tank (310-01A Fuel Tank and Lines - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).
  1. NOTE: To avoid introducing contamination into the fuel tank use compressed air to clean the Fuel Pump and Sender Unit connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.

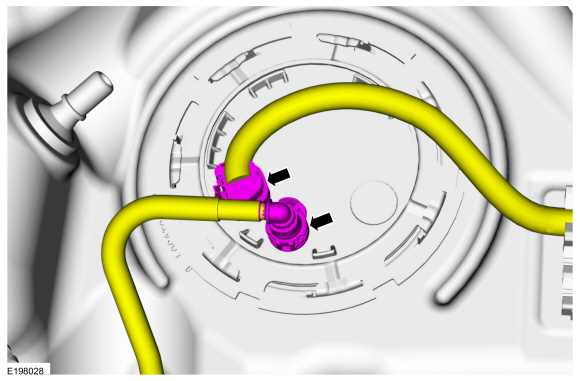

    Disconnect the electrical connector, the fuel feed quick release coupling and fuel vapor tube quick release coupling.
    Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.0L EcoBoost (184kW/250PS) – MI4, General Procedures).
imagen2.dll?id=E198028_EUR&w=580&t=JPG

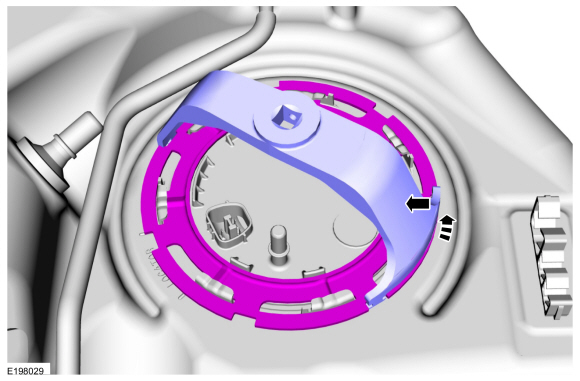

  1. Using the lock ring tool, unlock and remove the Fuel Pump and Sender unit lock ring.
    Use Special Service Tool: 310-123  Locking Ring, Fuel Tank.
imagen2.dll?id=E198029_EUR&w=580&t=JPG







AWD

    1. NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm and filter.

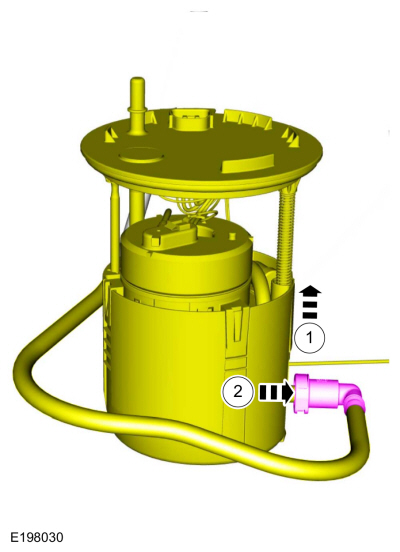

      Carefully lift the Fuel Pump and Sender Unit out of the fuel tank enough to access the internal fuel tube-to-Fuel Pump and Sender Unit quick release coupling.
    1. Dsconnect the internal fuel tube-to-Fuel Pump and Sender Unit quick release coupling.
      Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.0L EcoBoost (184kW/250PS) – MI4, General Procedures).
imagen2.dll?id=E198030_EUR&w=400&t=JPG







All vehicles

  1. NOTE: If the Fuel Pump and Sender Unit does not clear the fuel tank opening, insert a screwdriver into the empty rod hole and slightly pull the screwdriver inboard until the Fuel Pump and Sender Unit aligns with the fuel tank opening.

    NOTE: Some residual fuel may remain in the Fuel Pump and Sender Unit. Carefully drain into a suitable container.

    NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm and filter.

    NOTE: Inspect the mating surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Wipe clean with a lint free towel. Install a new Fuel Pump and Sender Unit or fuel tank if the Oring seal contact area is bent, scratched or corroded.

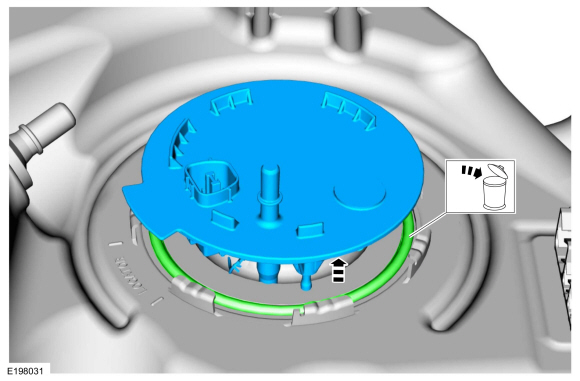

    Completely remove the Fuel Pump and Sender Unit from the fuel tank, and remove and discard the Fuel Pump and Sender Unit ring.
imagen2.dll?id=E198031_EUR&w=580&t=JPG







Installation

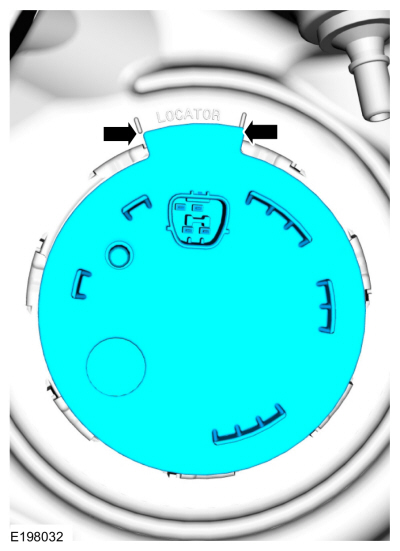

  1. NOTE: Make sure to install a new Fuel Pump and Sender Unit O-ring seal.

    NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.

    To install, reverse the removal procedure.
imagen2.dll?id=E198032_EUR&w=400&t=JPG













2.7L EcoBoost - Fuel Pump and Sender Unit- Removal and Installation

Special Tool(s) / General Equipment

imagen2.dll?id=E80148&w=99&t=JPG 310-123
Locking Ring, Fuel Tank
TKIT-2004J-F
TKIT-2005U-LM

Removal

All vehicles

  1. NOTE: Removal steps in this procedure may contain installation steps.

    Remove the fuel tank.
    Refer to: Fuel Tank (310-01B Fuel Tank and Lines - 2.7L EcoBoost (238kW/324PS), Removal and Installation).
  1. NOTE: To avoid introducing contamination into the fuel tank use compressed air to clean the Fuel Pump and Sender Unit connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.

    Disconnect the electrical connector, the fuel feed quick release coupling and fuel vapor tube quick release coupling.
    Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 2.7L EcoBoost (238kW/324PS), General Procedures).
imagen2.dll?id=E198028_EUR&w=580&t=JPG






  1. Using the lock ring tool, unlock and remove the Fuel Pump and Sender unit lock ring.
    Use Special Service Tool: 310-123  Locking Ring, Fuel Tank.
imagen2.dll?id=E198029_EUR&w=580&t=JPG







AWD

    1. NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm and filter.

      Carefully lift the Fuel Pump and Sender Unit out of the fuel tank enough to access the internal fuel tube-to-Fuel Pump and Sender Unit quick release coupling.
    1. Disconnect the internal fuel tube-to-Fuel Pump and Sender Unit quick release coupling.
      Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 2.7L EcoBoost (238kW/324PS), General Procedures).
imagen2.dll?id=E198030_EUR&w=400&t=JPG







All vehicles

  1. NOTE: If the Fuel Pump and Sender Unit does not clear the fuel tank opening, insert a screwdriver into the empty rod hole and slightly pull the screwdriver inboard until the Fuel Pump and Sender Unit aligns with the fuel tank opening.

    NOTE: Some residual fuel may remain in the Fuel Pump and Sender Unit. Carefully drain into a suitable container.

    NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm and filter.

    NOTE: Inspect the mating surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Wipe clean with a lint free towel. Install a new Fuel Pump and Sender Unit or fuel tank if the Oring seal contact area is bent, scratched or corroded.

    Completely remove the Fuel Pump and Sender Unit from the fuel tank, and remove and discard the Fuel Pump and Sender Unit O-ring seal.
imagen2.dll?id=E198031_EUR&w=580&t=JPG







Installation

  1. NOTE: Make sure to install a new Fuel Pump and Sender Unit O-ring seal.

    NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.

    To install, reverse the removal procedure.
imagen2.dll?id=E198032_EUR&w=400&t=JPG









Good luck!
