TSB 23-2075 - 2018-2019 Edge, 2018 MKX, 2019 Nautilus, 2.7L EcoBoost Built On or Before August 1, 2019 - Oil Pan Leaking + Other Models With 2.7L & 3.0L Ecoboost

[Haz]

Document Download Link> TSB 23-2075 - 2018-2019 Edge, 2018 MKX, 2019 Nautilus, 2.7L EcoBoost Built On or Before August 1, 2019 - Oil Pan Leaking + Other Models With 2.7L & 3.0L Ecoboost.pdf
TECHNICAL SERVICE BULLETIN Oil Pan Leaking - Built On Or Before 15-Aug-2019	23-2075 08 March 2023

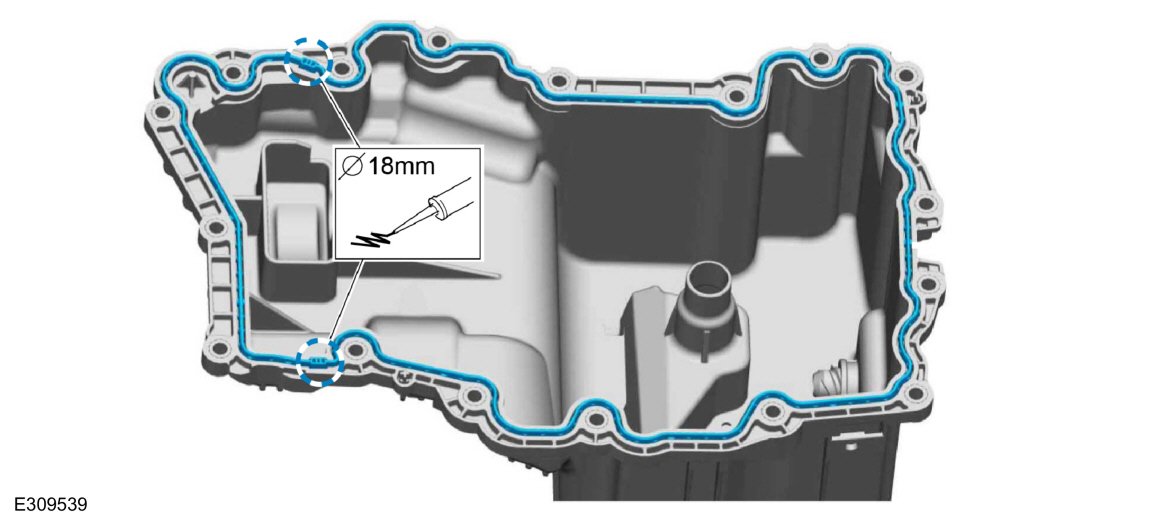

This bulletin supersedes 19-2387.   Model: Ford 2018-2019 Edge Engine: 2.7L EcoBoost Built on or before 1-Aug-2019 2018-2019 Fusion Engine: 2.7L EcoBoost Built on or before 15-Aug-2019 Lincoln 2018-2019 Continental Engine: 2.7L EcoBoost Engine: 3.0L EcoBoost Built on or before 1-Aug-2019 2018 MKX Engine: 2.7L EcoBoost Built on or before 1-Aug-2019 2018-2019 MKZ Engine: 3.0L EcoBoost Built on or before 15-Aug-2019 2019 Nautilus Engine: 2.7L EcoBoost Built on or before 1-Aug-2019   Summary   This article supersedes TSB 19-2387 to update the Part List.   Issue: Some 2018-2019 Edge/Continental, 2018 MKX and 2019 Nautilus vehicles built on or before 1-Aug-2019 and 2018-2019 Fusion/MKZ vehicles built on or before 15-Aug-2019 equipped with a 2.7L EcoBoost or 3.0L EcoBoost engine may exhibit an oil leak from the engine oil pan RTV seal. To correct the condition, follow the Service Procedure steps to replace the oil pan with a new oil pan equipped with a press in place gasket.   Action: Follow the Service Procedure steps to correct the condition on vehicles that meet all of the following criteria:   • One of the following vehicle lines: - 2018-2019 Edge/Continental built on or before 1-Aug-2019 - 2018 MKX built on or before 1-Aug-2019 - 2019 Nautilus built on or before 1-Aug-2019 - 2018-2019 Fusion/MKZ built on or before 15-Aug-2019   • 2.7L/3.0L EcoBoost engine • Oil leak from the engine oil pan RTV seal Parts Service Part Number Quantity Description Unit of Issue Piece Quantity KU2Z-6731-A 1 Oil Filter 1 1 KT4Z-6675-D 1 Oil Pan 1 1 FT4Z-6626-A 1 Oil Pump Seal 1 1 DS7Z-19B596-A 1 A/C O-Rings And Seal Kit 6 2 DL3Z-19B596-B 1 A/C O-Rings And Seal Kit 1 1 Kit W714265-S442 1 Left Catalytic Converter Nuts 4 2 BL3Z-9450-A 1 Left Catalytic Converter Gasket 1 1 W712458-S900 1 Left Catalytic Converter Studs (2019 Edge / Nautilus) 4 2 XO-5W30-Q1SP As Needed Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (All Markets Except Canada)     CXO-5W30-LSP6 As Needed Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada Only)     TA-357 As Needed Motorcraft® High Performance Engine RTV Silicone     YN-19 As Needed Motorcraft® R-134a Refrigerant (All Markets Except Canada and Mexico)     CYN-19-RB As Needed R-134a Refrigerant (Canada Only)     MYN-19 As Needed Motorcraft® R-134a Refrigerant (Mexico Only)     YN-35 As Needed Motorcraft® R-1234yf Refrigerant PAG Oil     YN-12-D As Needed Motorcraft® PAG Refrigerant Compressor Oil (R-134a Only)     XL-1 As Needed Motorcraft® Penetrating and Lock Lubricant     XL-2 As Needed Motorcraft® High Temperature Nickel Anti-Seize Lubricant     ZC-30-A As Needed Motorcraft® Gasket Remover     ZC-31-B As Needed Motorcraft® Metal Surface Prep Wipes     ZC-20 As Needed Motorcraft® Engine Shampoo and Degreaser (All Markets Except Canada)     CXC-66-A As Needed Motorcraft® Engine Shampoo (Canada Only)     PM-4-A As Needed Motorcraft® Metal Brake Parts Cleaner (Compliant With Low Volatile Organic Compound Requirements As Required In Some USA States)     PM-4-B As Needed Motorcraft® Metal Brake Parts Cleaner (Not Compliant With Volatile Organic Compound Requirements)       Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Service Part Warranty (SPW)/Special Service Part (SSP)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/SPW/SSP/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.   Labor Times Description Operation No. Time 2018-2019 Continental 2.7L/3.0L EcoBoost: Inspect And Replace The Engine Oil Pan (Do Not Use With Any Labor Operations Outside Of This Article) (Can Be Claimed With D Or E And F) 232075A 3.1 Hrs. 2018-2019 Edge, 2018 MKX and 2019 Nautilus 2.7L EcoBoost: Inspect And Replace The Engine Oil Pan (Do Not Use With Any Labor Operations Outside Of This Article) (Can Be Claimed With D Or E And F) 232075B 3.4 Hrs. 2018-2019 Fusion 2.7L EcoBoost, 2018-2019 MKZ 3.0L EcoBoost: Inspect And Replace The Engine Oil Pan (Do Not Use With Any Labor Operations Outside Of This Article) (Can Be Claimed With D Or E And F) 232075C 3.4 Hrs. 2018-2019 Edge/MKX/Continental/Fusion, 2019 Nautilus: Additional Time To Check And Correct Toe Vehicles Without Lane Departure 232075D 0.6 Hrs. 2018-2019 Edge/MKX/Continental/Fusion, 2019 Nautilus: Additional Time To Check And Correct Toe Vehicles With Lane Departure 232075E 0.8 Hrs. 2018-2019 Edge/MKX/Continental/Fusion, 2019 Nautilus: Additional Time When 360 Degree Camera Alignment Is Necessary 232075F 0.5 Hrs.   Repair/Claim Coding Causal Part: 6675 Condition Code: D8   Service Procedure  CAUTION: Do not use the oil pan with press-in-place gasket on 2015-2017 model year vehicles as this oil pan is not equipped with a positive crankcase ventilation (PCV) check valve. Installation of this oil pan on a 2015-2017 model year vehicle will result in oil consumption which may result in engine damage.   1. Remove and discard the oil pan and oil pump seal. Refer to Workshop Manual (WSM), Section 303-01. 2. Clean and prepare the engine sealing surface. Refer to WSM, Section 303-00. 3. Install the new oil pump seal. 4. Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to engine the front cover-to-cylinder block joint areas on the oil pan. (Figure 1) NOTE: The new oil pan does not require the use of Motorcraft® High Performance Engine RTV Silicone in any other location. Figure 1 5. Install the new oil pan. Refer to the WSM, Section 303-01.   © 2023 Ford Motor Company



Supplemental document download link> Oil Pan - Removal and Installation - 2.7L EcoBoost - 2019 Edge Workshop Manual.pdf



Edited November 5, 2023 by Haz

[Haz]

The following information from the Edge Workshop Manual may be helpful toward determining your vehicle's Engine Build Date...



Engine Code Information Label

The engine code information label, located on the LH valve cover, contains the following:







Item 6/7/8 data is also included as the Engine Trace Serial Number in the OASIS System's Vehicle Information Report, allowing verification of an engine as originally installed.



The label's appearance may vary by model year, but Build Date coding is consistent...



Photo courtesy omar302





Photo courtesy Davidoo



Good luck!
