gary_minnesota Posted September 7, 2020 Report Share Posted September 7, 2020 Quick video on the location of lower fuse box on a 2016 Ford Edge. 1 1 Quote Link to comment Share on other sites More sharing options...
ezndo Posted September 8, 2020 Report Share Posted September 8, 2020 Nicely done, thanks! Quote Link to comment Share on other sites More sharing options...
TroyH Posted April 15, 2022 Report Share Posted April 15, 2022 Thank you for the video. I'm a new owner of a 2021 Edge Titanium and started looking for everything. The top fuse panel was easy to get to and I removed the layer to what I thought was the lower fuse box. I didn't know it was upside down, opposite the upper. I did fund a bunch of connectors with in line fuses down on the next layer. I'll look again for the actual lower fuses. Now, slightly different topic. Does anyone have a clue how to get at the under dash fuse panel? I can see it but can only barely touch it with a couple fingertips. Is there a path to it or something else that needs to be taken off to get access to it? They built a pretty good wall around it. I'm wanting to put in a dash cam but wasn't too scope out where things need to go veggie starting the installation. I can start a new thread of it best. Quote Link to comment Share on other sites More sharing options...
MKX ONTARIO Posted September 17 Report Share Posted September 17 I just viewed gary_minnesota's video on accessing the lower compartment fuse panel. It is an excellent video and solved the .mystery. QUESTION: I want to only remove the fuse for the lift gate to reset it. But it looks like accessing the lower panel will kill the power to the whole panel by first removing the 2 large connectors. Should the battery be disconnected first? If yes than that will reprogram everything whichI don't want to do. Quote Link to comment Share on other sites More sharing options...
Haz Posted September 17 Report Share Posted September 17 (edited) Welcome to the Forum @MKX ONTARIO! If you prefer, you can remove the Rear Gate Trunk Module (RGTM) power by accessing the RGTM and removing Connector C4174A from the RGTM for 20 seconds, and then reinsert Connector C4174A to fulfill the Power Liftgate Initialization procedure. Related Workshop Manual and Wiring Resource information is attached below as PDF documents... Good luck! REAR GATE TRUNK MODULE (RGTM) - Connector C4174A Pinout Diagram - 2016 Edge.pdf REAR GATE TRUNK MODULE (RGTM) - Connector C4174A Location - 2016 Edge.pdf REAR GATE TRUNK MODULE (RGTM) - Power Distribution Wiring Diagram - 2016 Edge.pdf Rear Gate Trunk Module (RGTM) - Removal and Installation - 2016 Edge Workshop Manual.pdf Audio Digital Signal Processing (DSP) Module - Removal and Installation - 2016 Edge Workshop Manual.pdf Loadspace Trim Panel - Removal and Installation - 2016 Edge Workshop Manual.pdf Power Liftgate Initialization - General Procedures - 2016 Edge Workshop Manual.pdf Edited September 17 by Haz 2 Quote Link to comment Share on other sites More sharing options...

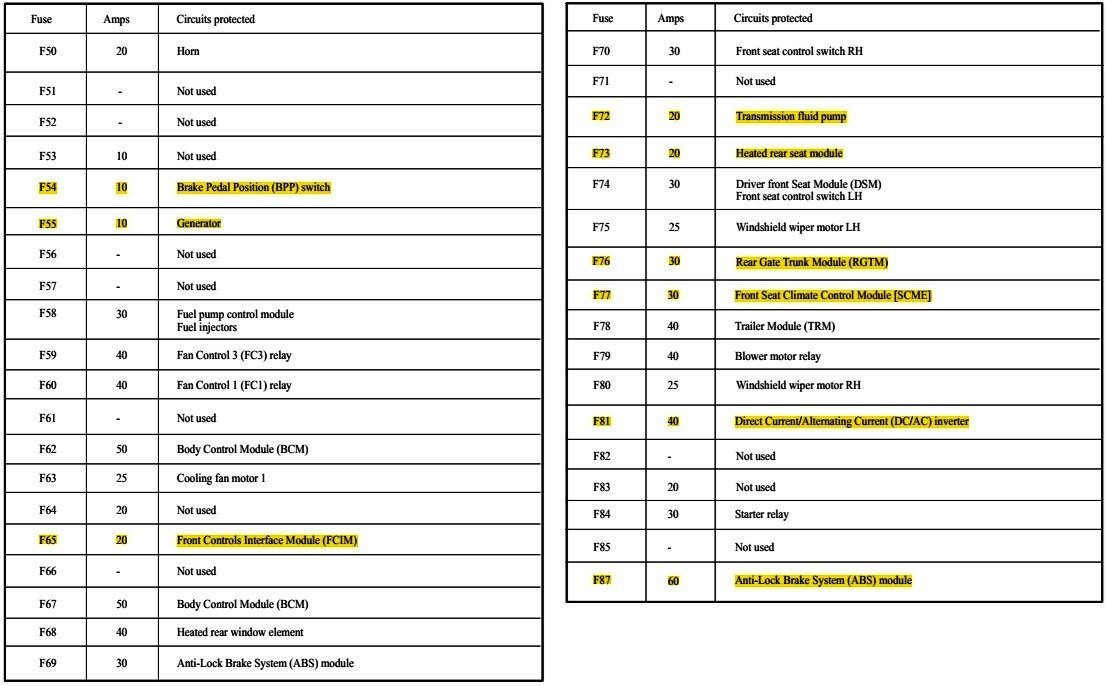

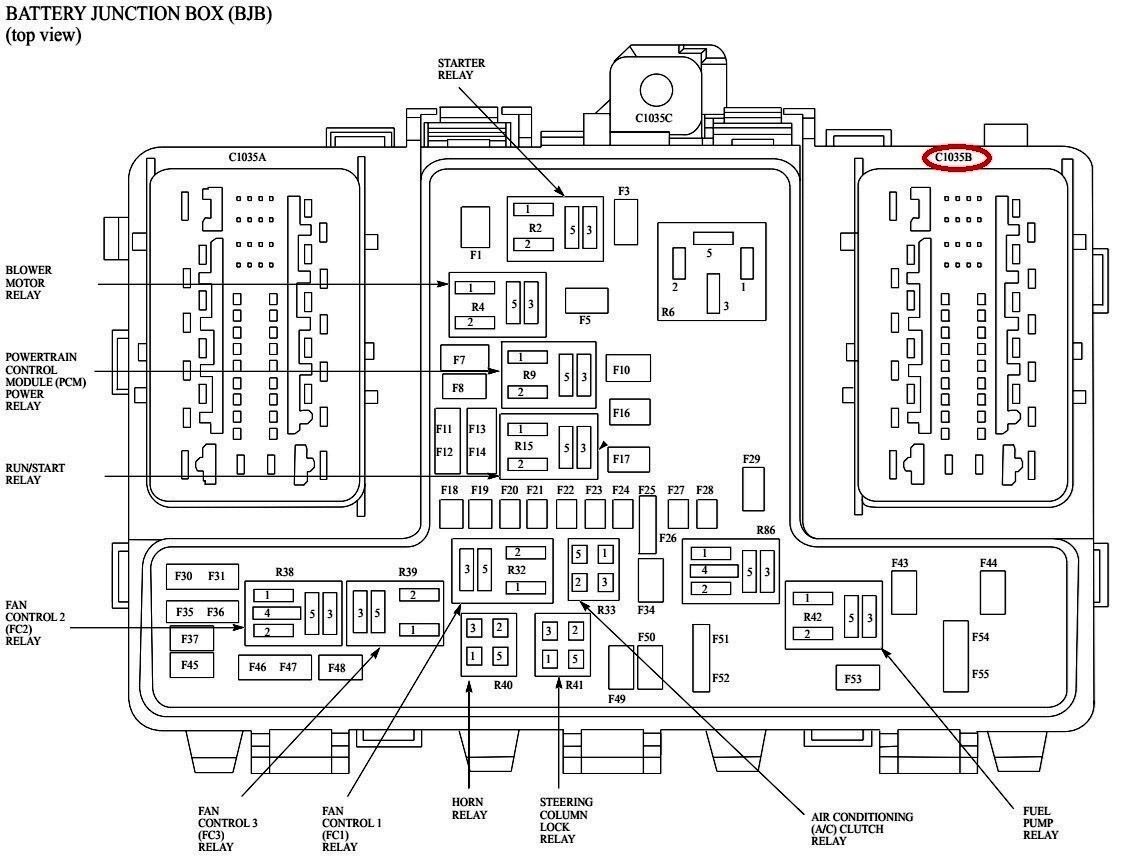

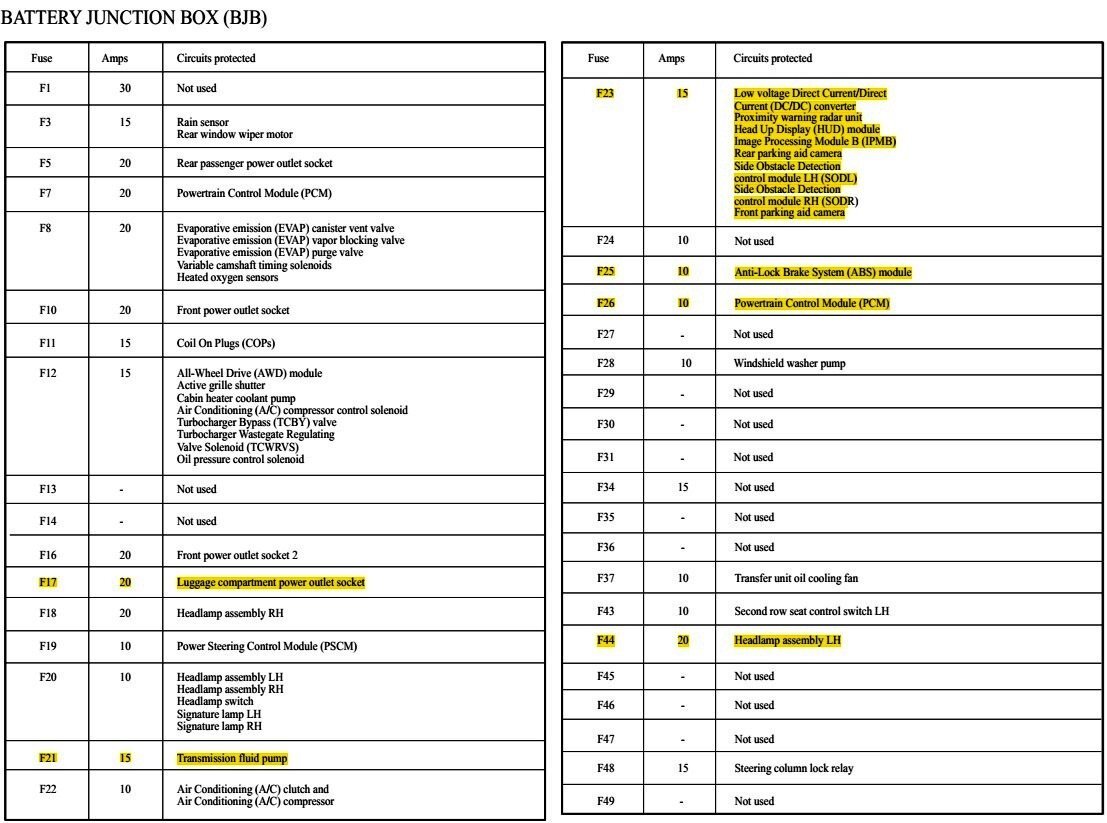

Haz Posted September 17 Report Share Posted September 17 @MKX ONTARIO: If you prefer to not disconnect the Rear Gate Trunk Module (RGTM) connector C4174A, you could disconnect Battery Junction Box (BJB) connector C1035B, which carries Fuse F76-protected power to the RGTM, and would limit any de-powering affect to the yellow-highlighted circuits/components shown below... Good luck! BATTERY JUNCTION BOX (BJB) - Connector C1035B Pinout Diagram - 2016 Edge.pdf BJB Legend 1 - Yellow Highlighted Circuits-Components Affected by BJB Connector C1035B Disconnection.pdf BJB Legend 2 - Yellow Highlighted Circuits-Components Affected by BJB Connector C1035B Disconnection.pdf BATTERY JUNCTION BOX (BJB) -Topside Illustration Showing Connector C1035B Location - 2016 Edge.pdf 1 Quote Link to comment Share on other sites More sharing options...
