fastprostreet Posted May 3, 2018 Report Share Posted May 3, 2018 A/C is not draining on our 2016 Edge SEL - Have spent hours searching on the internet and cannot find where the A/C drain is located on 2015 and up Ford Edges. Anyone have any pictures or diagrams? Have an appointment with the dealer, but that is a week out. Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted May 3, 2018 Report Share Posted May 3, 2018 Believe yours is on tbe firewall. Should be easy to find. Heres a video that might help. 1 Quote Link to comment Share on other sites More sharing options...

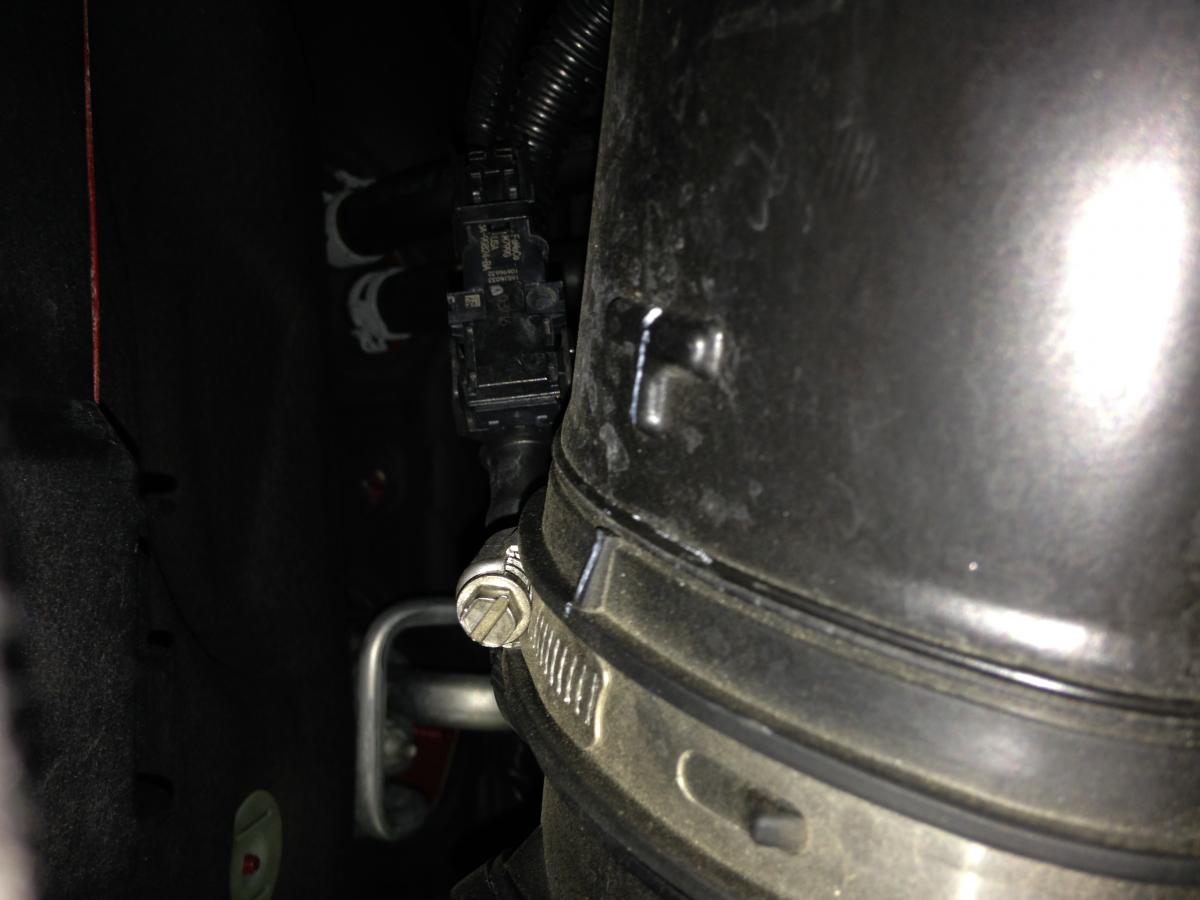

fastprostreet Posted May 4, 2018 Author Report Share Posted May 4, 2018 Appreciate the video! Unfortunately ours is the 2.0 Turbo and while I can see the evap and heater core lines in the firewall - I see nothing that looks like a drain. I could barely get my phone back there to take a picture. Quote Link to comment Share on other sites More sharing options...
t0lkman Posted May 4, 2018 Report Share Posted May 4, 2018 What does it mean A/C is not draining? Is it blowing misty air or what? Quote Link to comment Share on other sites More sharing options...
fastprostreet Posted May 4, 2018 Author Report Share Posted May 4, 2018 My wife is complaining that it smells musty when she turns the system on. The A/C works - but no there is no condensation dripping from the car on an 80 degree day - which means it is collecting in the evap housing under the dash. The drain line must be clogged - but I have no idea where it is located to work on it. Unfortunately the dealer cannot get the car in for another week, I was hoping to unclog this Saturday. 1 Quote Link to comment Share on other sites More sharing options...
WWWPerfA_ZN0W Posted May 4, 2018 Report Share Posted May 4, 2018 Not seeing any drain lines listed for Gen 2 on dealer sites. Might be there but not listed. Parts diags do not show the line at all for Gen 2. Quote Link to comment Share on other sites More sharing options...
fastprostreet Posted May 4, 2018 Author Report Share Posted May 4, 2018 Thanks for checking!!! I checked the exploded diagrams on Bob Tasca Ford parts and came up with nothing. I have a shop manual from Ebay - it does not show anything either. Guess it's a secret! LOL! 1 Quote Link to comment Share on other sites More sharing options...
WWWPerfA_ZN0W Posted May 4, 2018 Report Share Posted May 4, 2018 a fellow member thought he had found a drain line, but unfortunately turned out not to be the case ... one day I will have a Gen 2 shop manual to explore & dissect LOL Quote Link to comment Share on other sites More sharing options...
fastprostreet Posted May 4, 2018 Author Report Share Posted May 4, 2018 Our daughter in laws 2014 Edge has the drain next to the gas pedal then it comes out at the transmission tunnel- there is a heat shield covering it - so I will check that location tonight and report back 1 Quote Link to comment Share on other sites More sharing options...
fastprostreet Posted May 5, 2018 Author Report Share Posted May 5, 2018 Ok - Finally had a chance to crawl under the car when it was completely cool. Looking from the underside at the transmission tunnel there is a heat shielding material. (Not a metal heat shield- that is further forward) I was able to place my hand flat inside this area. The back of this heat shield material was was completely soaked with water. So - I know the drain is somewhere in this area, but I was not able to find it. Without damaging the material and no obvious way to unfasten - I left it alone. The fact that there is water - tells me it's draining, but it sure seems like a bad idea to place the drain exit behind this heat shield material. Sorry I could not provide more info. 1 Quote Link to comment Share on other sites More sharing options...
