CTFordfan Posted February 8, 2018 Report Share Posted February 8, 2018 just traded the 11 Edge for a used 17 Titanuim 2.0. It only has 14 k however with only 1 oil change done by previous owner it was missing a screw holding the felt under body cover on. As I changed the oil upon closer inspection I see the screw is actually broken off in the fastener. Likely an over zealous tech with a cordless impact. So I need the screw and the body fastener it screws into. This is the rear of the cover and it also holds up the front of a metal cover. I saw I diagram here on the site but it does not show that particular fastener. Can anyone help with a part number of that body nut?? Any help is much appreciated. Quote Link to comment Share on other sites More sharing options...
vega Posted February 8, 2018 Report Share Posted February 8, 2018 I needed the same and could only get it at the dealer. Sorry, I don't have the part number but just tell them and they will look it up. Quote Link to comment Share on other sites More sharing options...
CTFordfan Posted February 9, 2018 Author Report Share Posted February 9, 2018 The dealer- looking at the same drawing I was, could not tell which type nut this position is. They only had the red plastic nuts in stock but i thought this spot had a metal nut- I will know soon enough when I can get under there again. Anyone know for sure? Quote Link to comment Share on other sites More sharing options...

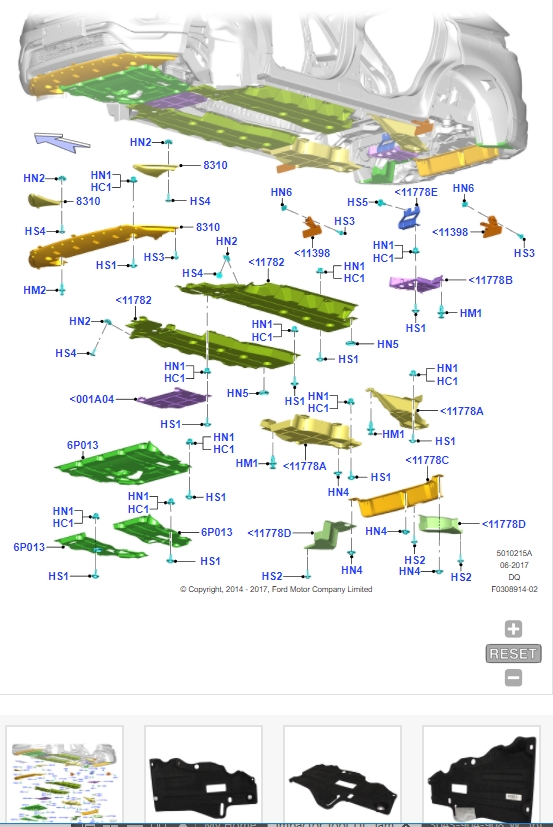

roots57 Posted February 14, 2018 Report Share Posted February 14, 2018 (edited) The dealer- looking at the same drawing I was, could not tell which type nut this position is. They only had the red plastic nuts in stock but i thought this spot had a metal nut- I will know soon enough when I can get under there again. Anyone know for sure? Take a look, I think you need the following parts, HC1, HN1, and HS1 (hardware for the 6P013 Air Shield) HC1 is the Clip and it is part number W718150 HN1 is the Nut and it is part number W702438 HS1 is the Screw w/ Spring Washer and it is part number W702413 Should cost you around $10.00 in total for one of each item Edited February 14, 2018 by roots57 3 Quote Link to comment Share on other sites More sharing options...
vega Posted February 15, 2018 Report Share Posted February 15, 2018 Use Tasca parts for the best and lowest price on these. I just ordered 2 of each of the three for about 10 bucks.. 1 Quote Link to comment Share on other sites More sharing options...
CTFordfan Posted February 18, 2018 Author Report Share Posted February 18, 2018 Thanks- Much appreciated- Quote Link to comment Share on other sites More sharing options...
CTFordfan Posted March 7, 2018 Author Report Share Posted March 7, 2018 So the dealer provided a pkg of red plastic insert nuts- wrong part, i have none of these in any position. Dealer provided screws with a torx head- wrong part, i have none of these in any position. Dealer provided- after I sent my wife back again and told them i need a metal insert, a small metal snap in insert that was correct and it accepts a 4.2 x 1.41 x 20 mm screw with built in washer. So again, even the dealer cannot tell which fastener is in what position with this dismal diagram. I had to tell them what was there, odd. While i was under there i also put two of those inserts where the plastic push in fastners are, and added 2 screws. i could not get them to snap in tight. So now I need only the 7mm driver to remove the cover. Anyone who changes oil must hate these covers. 1 Quote Link to comment Share on other sites More sharing options...
