oskar27 Posted May 8, 2016 Report Share Posted May 8, 2016 Does the footwell lighting is included in the 2016 Titanium Edge? If so where is the control for it? My old 2013 Edge Limited had the control on the MFT screen and I could switch to 6 different colors. On the 2016 Titanium the MFT does not have anything for ambient lighting or lights Quote Link to comment Share on other sites More sharing options...
WWWPerfA_ZN0W Posted May 8, 2016 Report Share Posted May 8, 2016 (edited) Any options in the instrument cluster for lighting? The Titanium and Sport are listed in the brochure as having ambient lighting, so I'd hope that's actually true. EDIT: You have Sync3, right? I think if you are on the Home Screen, you will see SETTINGS in the lower right hand corner. Select that, then look for the AMBIENT LIGHTING option. You can adjust from there. Tap a color once to active ambient lighting.This sets the color to the highest intensity.You can drag the colors up and down toincrease or decrease the intensity.To switch ambient lighting off, press theactive color once or drag the active colorall the way down to zero intensity. The manual is available here: http://www.fordservicecontent.com/Ford_Content/Catalog/owner_information/SYNC-3-Supplement-version-2_sycsy_EN-US_10_2015.pdf Pg 97 It is unfortunate the thing is so skimpy on pics. Edited May 8, 2016 by WWWPerfA_ZN0W Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 8, 2016 Author Report Share Posted May 8, 2016 I understand what you are saying but in my 2016 Edge I don’t have anything similar Yes I have Sync3 and on my screen when I touch the “Settings” I get 8 squares on the screen (Sound, Clock, Bluetooth, 911 Assist, Navigation, Mobile Apps, General and Voice Control) When I touch on the “General Square” I get: Language, Distance, Temperature, Touch Screen Beep, Auto System Updates, About, Software Licences and. Main Reset. There is nothing about Lights or Ambient Lights On the left instrument cluster I do have an entry for Lights but the only option on this entry is to adjust how many seconds the lights stay on after you open a door etc. The footwells and the bottom of the doors are lit when I open any door but when I close the doors all these lights go OFF. Thanks for the manual, its handy to have it on .PDF format Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted May 9, 2016 Report Share Posted May 9, 2016 Does the footwell lighting is included in the 2016 Titanium Edge? If so where is the control for it? Standard on Titanium and Sport. On home screen, "settings" key on your home screen, touch "vehicle" and "ambient lighting". Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 9, 2016 Author Report Share Posted May 9, 2016 As I mentioned on the Sync3 screen under Settings, I have nothing with "vehicle" or "ambient lighting" On the instrument cluster I do have "vehicle" but under this screen there is nothing about "ambient lighting" Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted May 9, 2016 Report Share Posted May 9, 2016 Should be part of the home screen. Try calling Sync support team at 888-270-1055 weekdays. Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 9, 2016 Author Report Share Posted May 9, 2016 Thanks for the phone number, I will post back the results Quote Link to comment Share on other sites More sharing options...
ONEDGE16 Posted May 9, 2016 Report Share Posted May 9, 2016 (edited) Just make sure under settings, you check page 2. To go to page 2 slide your screen to the left, additional settings option are available, inculding ambiant lighting. Edited May 9, 2016 by ONEDGE16 1 Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 9, 2016 Author Report Share Posted May 9, 2016 This DID the trick ONEDGE16, wow, I dont have page 2 but looking on the screen I touched it and swept with my finger to the left and there I can see the extra icons for Ambient Light, WiFi, Vallet and one more which I forget.what it was. Now I can check all the other screens in the same way to see what else I can discover, LOL Much appreciated 1 Quote Link to comment Share on other sites More sharing options...
akirby Posted May 9, 2016 Report Share Posted May 9, 2016 I am ashamed to admit it took me several days to realize there was a page 2 to the settings screen. It is not obvious at all. 1 Quote Link to comment Share on other sites More sharing options...
WWWPerfA_ZN0W Posted May 9, 2016 Report Share Posted May 9, 2016 Don't see a mention in the manual either, pfft This is where screenshots of the live product come in handy, so we know what we are actually dealing with! Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 9, 2016 Author Report Share Posted May 9, 2016 I agree with you folks, nowhere is mentioned to slide the screen to see the next functions. Now I will go and check all screens to see if I discover more goodies, lol 1 Quote Link to comment Share on other sites More sharing options...
ONEDGE16 Posted May 9, 2016 Report Share Posted May 9, 2016 if you go to your Ford Owner site, you'll find additional resources that are not included in the owner's manual. http://owner.ford.com/tools/account/sign-in.html I've attached a PDF for the Settings in Sync 3. SYNC 3 Settings overview _ SYNC _ Official Ford Owner Site.pdf 1 Quote Link to comment Share on other sites More sharing options...
oskar27 Posted May 10, 2016 Author Report Share Posted May 10, 2016 Thanks for the SYNC3 .PDF, thats the best I have seen so far I did subscribe to the owner.ford.com site but did not have a chance yet to explore it Quote Link to comment Share on other sites More sharing options...
Gardenman Posted March 26, 2023 Report Share Posted March 26, 2023 On 5/8/2016 at 12:20 AM, oskar27 said: Does the footwell lighting is included in the 2016 Titanium Edge? If so where is the control for it? My old 2013 Edge Limited had the control on the MFT screen and I could switch to 6 different colors. On the 2016 Titanium the MFT does not have anything for ambient lighting or lights Where is the drivers side foot well lighting located on the 2018 Titanium. Quote Link to comment Share on other sites More sharing options...

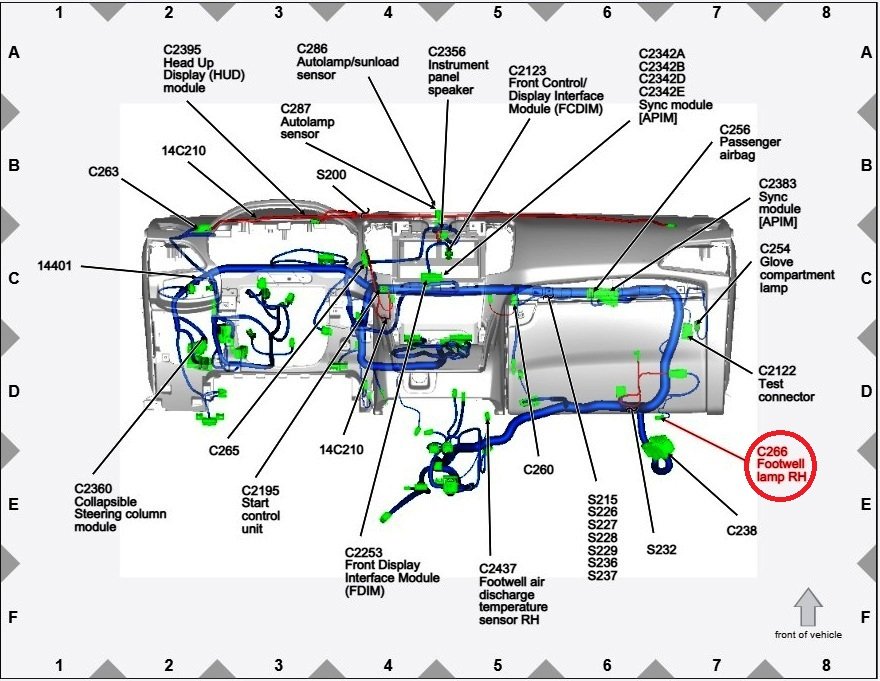

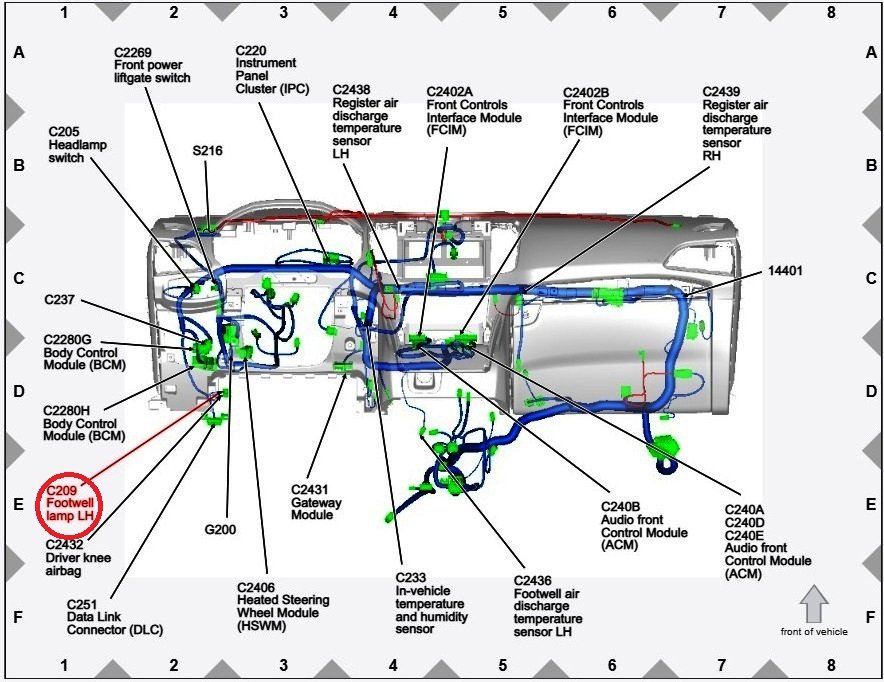

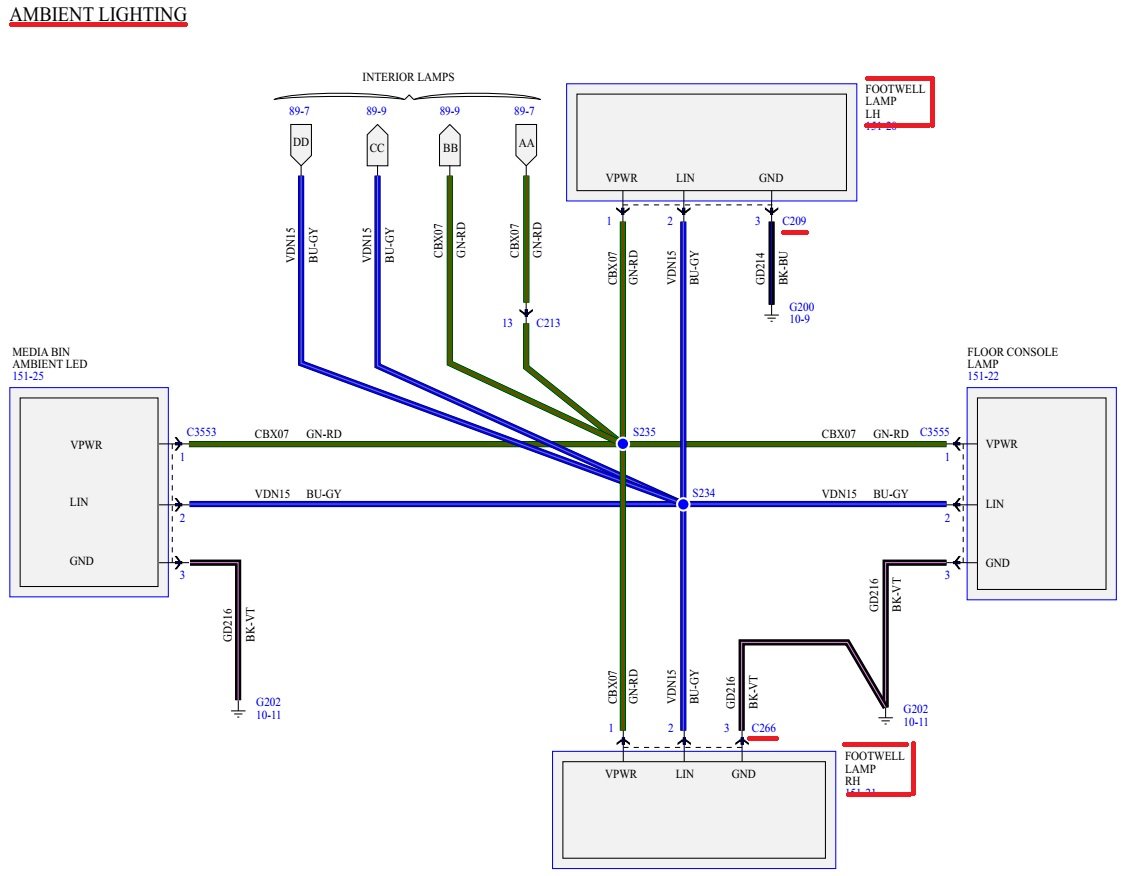

Haz Posted March 26, 2023 Report Share Posted March 26, 2023 (edited) From the 2018 Edge Workshop Manual... One Or More Of The Ambient Lighting LEDs Are Inoperative Or Do Not Change Color/Intensity Refer to Wiring Diagrams for schematic and connector information. **Download links to Connector details documents is at bottom of this post** Normal Operation and Fault Conditions REFER to: Interior Lighting - System Operation and Component Description **Download link to this document at bottom of this post** DTC Fault Trigger Conditions DTC Description Fault Trigger Conditions B1465:00 Ambient Lighting Bus 1: No Sub Type Information Sets when the BCM detects a fault in the LIN circuit to the door ambient lighting Light Emitting Diodes (LEDs). B1467:00 Ambient Lighting Bus 3: No Sub Type Information Sets when the BCM detects a fault in the LIN circuit to the footwell and center console ambient lighting Light Emitting Diodes (LEDs). Possible Sources Wiring, terminals or connectors Ambient lighting LED BCM PINPOINT TEST I: ONE OR MORE OF THE AMBIENT LIGHTING LIGHT EMITTING DIODES (LEDS) ARE INOPERATIVE OR DO NOT CHANGE COLOR/INTENSITY I1 CHECK THE AMBIENT LIGHTING LIGHT EMITTING DIODES (LEDS) Ignition ON. Place the headlamp switch in the PARKING LAMPS position. Observe the operation of all the ambient lighting Light Emitting Diodes (LEDs). Are all the front and rear door, instrument panel, cup holder and footwell ambient lighting Light Emitting Diodes (LEDs) inoperative? Yes GO to Pinpoint Test H No GO to I2 I2 CHECK FOR VOLTAGE TO THE LED (LIGHT EMITTING DIODE) Ignition OFF. Disconnect Inoperative ambient lighting LED . Ignition ON. Place the headlamp switch in the PARKLAMPS position. Measure: LH Front Footwell Positive Lead Measurement / Action Negative Lead C209 Pin 1 Ground RH Front Footwell Positive Lead Measurement / Action Negative Lead C266 Pin 1 Ground Is the voltage greater than 11 volts? Yes GO to I3 No REPAIR the LED voltage supply circuit in question. I3 CHECK THE LED (LIGHT EMITTING DIODE) GROUND CIRCUIT FOR AN OPEN Measure: LH Front Footwell Positive Lead Measurement / Action Negative Lead C209 Pin 1 C209 Pin 3 RH Front Footwell Positive Lead Measurement / Action Negative Lead C266 Pin 1 C266 Pin 3 Is the voltage greater than 11 volts? Yes GO to I4 No REPAIR the ground circuit in question. I4 CHECK THE AMBIENT LIGHTING LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR AN OPEN Ignition OFF. Place the headlamp switch in the OFF position. Disconnect BCM C2280D (door and rear footwell Light Emitting Diodes (LEDs)). Disconnect BCM C2280G (cup holder, front console and front footwell Light Emitting Diodes (LEDs)). Measure: LH Front Footwell Positive Lead Measurement / Action Negative Lead C209 Pin 2 C2280G Pin 13 RH Front Footwell Positive Lead Measurement / Action Negative Lead C266 Pin 2 C2280G Pin 13 Is the resistance less than 3 ohms? Yes INSTALL a new ambient lighting LED in question. No REPAIR the circuit. Document Download Links> Interior Lighting - System Operation and Component Description - 2018 Edge Workshop Manual.pdf Ambient Lighting Wiring Diagram - Footwell-Console-Media Bin - 2018 Edge Workshop Manual.pdf Ambient Footwell Lamp LH Connector C209 Location- 2018 Edge Workshop Manual.pdf Ambient Footwell Lamp LH - Connector C209 Details + Photo - 2018 Edge Workshop Manual.pdf Ambient Footwell Lamp RH Connector C266 Location- 2018 Edge Workshop Manual.pdf Ambient Footwell Lamp RH - Connector C266 Details + Photo - 2018 Edge Workshop Manual.pdf Body Control Module (BCM) - Connector C2280G Location - 2018 Edge Workshop Manual.pdf Body Control Module (BCM) - Connector C2280G Plug-In Location - 2018 Edge Workshop Manual.pdf Body Control Module (BCM) - Connector C2280G Details -2018 Edge Workshop Manual.pdf Good luck! Edited March 26, 2023 by Haz Quote Link to comment Share on other sites More sharing options...

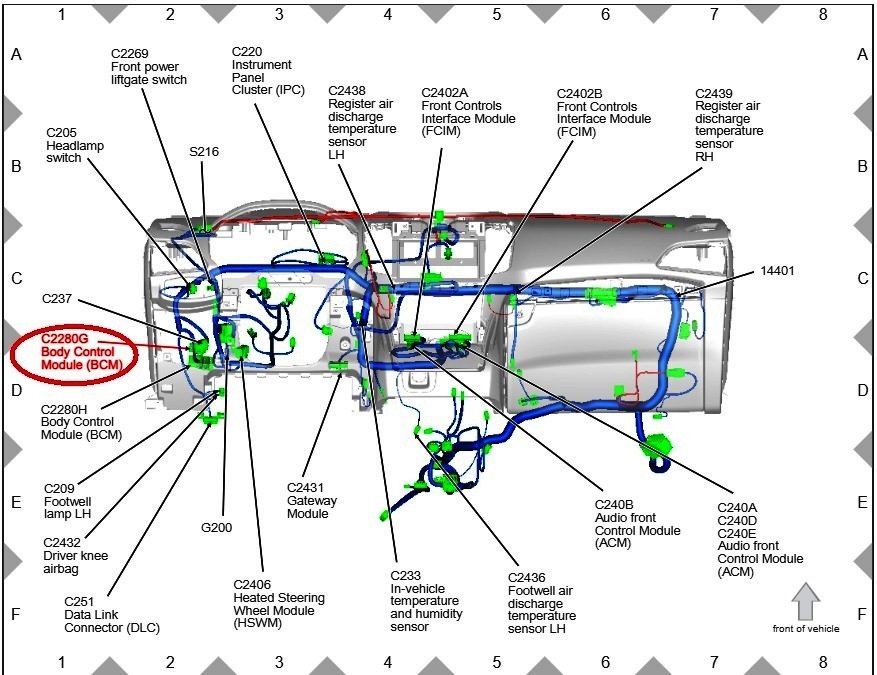

jsenkski Posted August 4, 2023 Report Share Posted August 4, 2023 Great information. Thank you. I recently purchased the Ford Ambient light kit CL8Z-13E700-AA for my 2018 Edge SEL. The only installation instructions I can find is for a 2013 Edge. In those instructions it says to tap in for power at the BCM connector C2280E Pin 6 Yellow/Blue parking light circuit. Would this be the same for the 2018 Edge or looking at your diagram would I use the BCM connector C2280G Pin 2 Parking Lamp switch? Before I start installing this I want to make sure I know exactly where to get the power from. Dealer wants $200 to install it. Thanks for your help. Quote Link to comment Share on other sites More sharing options...

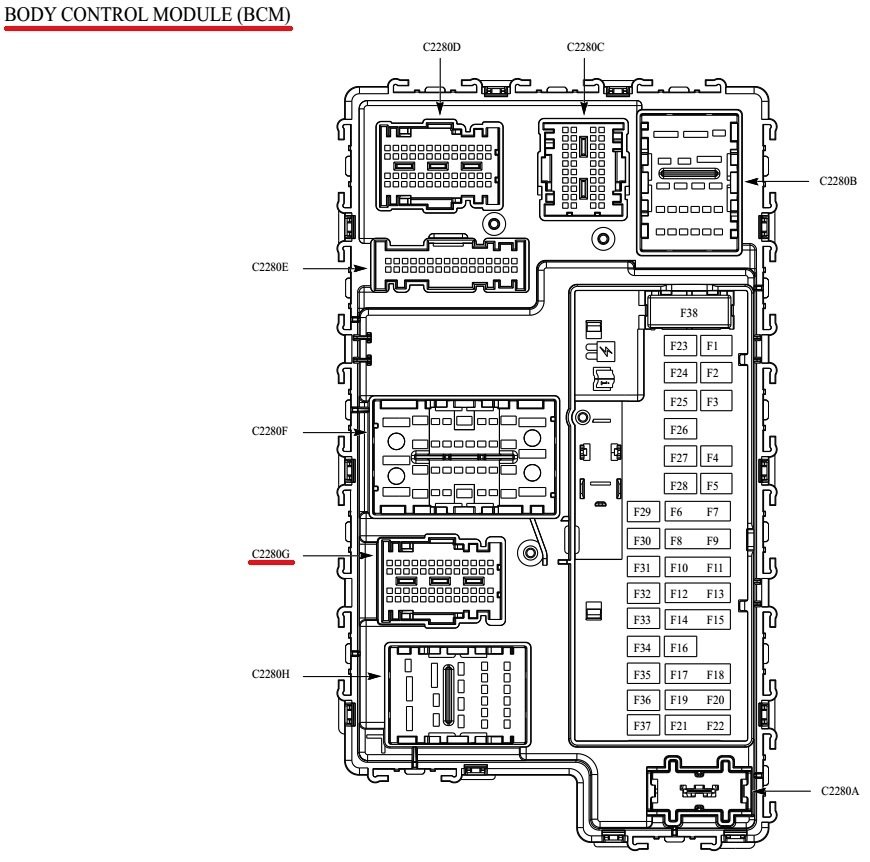

Haz Posted August 4, 2023 Report Share Posted August 4, 2023 I located the 2018 Model Year multi-vehicle/multi-lingual Installation Instructions, which I pared down to Edge/English for you, and I've added relevant 2018 Edge Wiring Diagrams and Connectors info below... Document download links> Ambient Lighting Kit - SKCL8J-13E700-AA - 2018 Model Year Installation Instructions - Edited for Edge.pdf Factory-Installed Ambient Lighting Power Distribution Wiring Diagram - 2018 Edge.pdf Headlamp Switch to Body Control Module (BCM) Wiring Diagram - 2018 Edge.pdf Body Control Module (BCM) - Connectors C2280F & C2280G Attachment Locations on BCM - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280F Details - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280F Location - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280G Details - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280G Location - 2018 Edge.pdf Interior Lighting - System Operation and Component Description - 2018 Edge Workshop Manual.pdf Good luck! 1 Quote Link to comment Share on other sites More sharing options...
jsenkski Posted August 4, 2023 Report Share Posted August 4, 2023 Great. Thanks. Connector C2280F pin 12 shows Control Mod. Park. Is this the parking light? Would you happen to have the diagrams for Connectors C2280B and C2280E? Thanks again for your help. Seems like there is multiple locations to tap in for the parking lamps on different connectors. Quote Link to comment Share on other sites More sharing options...
Haz Posted August 4, 2023 Report Share Posted August 4, 2023 The following Parking Lamps wiring diagram may be more useful to you than the previously supplied Headlamp Switch wiring diagram... Document download links> Body Control Module (BCM) - Parking Lamps Wiring Diagram - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280B Details - 2018 Edge.pdf Body Control Module (BCM) - Connector C2280E Details - 2018 Edge.pdf Exterior Lighting - System Operation and Component Description - 2018 Edge Workshop Manual.pdf Good luck! 1 Quote Link to comment Share on other sites More sharing options...
jsenkski Posted August 4, 2023 Report Share Posted August 4, 2023 Thank you!!!! Much appreciated. 1 Quote Link to comment Share on other sites More sharing options...
