Navy LDO Posted August 1, 2015 Report Share Posted August 1, 2015 Hi! Alternator has died, and seeing it looks difficult to get to, is it better to just take it in to have it done or can I do it myself. I am currently in Hawaii And have limited tools, so hope I wouldn't need any specialty tools. I'm thinking remove the passenger side wheel well and get at it that way? Thanks! Quote Link to comment Share on other sites More sharing options...

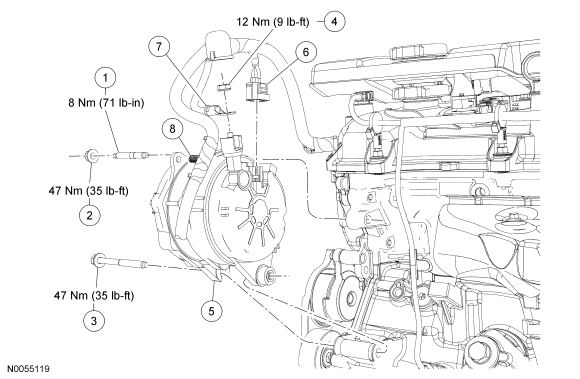

WWWPerfA_ZN0W Posted August 1, 2015 Report Share Posted August 1, 2015 (edited) Generator Item Part Number Description 1 W712609 Generator stud 2 W520414 Generator nut 3 W709986 Generator bolt 4 7H953 Generator B+ terminal nut 5 10300 Generator 6 — Generator electrical connector (part of 14B060) 7 — Generator B+ terminal (part of 14B060) 8 — Pin-type retainer, wiring harness Removal and Installation Disconnect the battery. For additional information, refer to Section 414-01 .Remove the cooling fan. For additional information, refer to Section 303-03 .Rotate the accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.Position the generator protective cover aside, remove the nut and position the generator B+ terminal aside. To install, tighten to 12 Nm (9 lb-ft). Disconnect the generator electrical connector. Detach the pin-type retainer and wiring harness. Remove the generator stud nut. To install, tighten to 47 Nm (35 lb-ft). Remove the generator stud. To install, tighten to 8 Nm (71 lb-in). Remove the generator bolt and the generator. Edited August 1, 2015 by WWWPerfA_ZN0W Quote Link to comment Share on other sites More sharing options...
Navy LDO Posted August 4, 2015 Author Report Share Posted August 4, 2015 Got it done! What a pain in the butt it was. Did have to remove the fan and and move some upper radiator hoses out of the way. Removed the passenger side tire and wheel well as well to get to the belt. Maneuvering the alternator while removing it makes it challenging while ensuring not to hit the radiator. Glad that's done! 2 Quote Link to comment Share on other sites More sharing options...
macbwt Posted August 4, 2015 Report Share Posted August 4, 2015 Just time, small hand tools, finesse and patience. Good Job!!! Quote Link to comment Share on other sites More sharing options...
carguy75 Posted August 4, 2015 Report Share Posted August 4, 2015 (edited) Got it done! What a pain in the butt it was. Did have to remove the fan and and move some upper radiator hoses out of the way. Removed the passenger side tire and wheel well as well to get to the belt. Maneuvering the alternator while removing it makes it challenging while ensuring not to hit the radiator. Glad that's done! Congrats. Nothing like tackling a repair job yourself, and saving money to boot. I lived in Hawaii for three years and have never had problem finding tools. I lived near Honolulu and the area had Oreily's Auto Parts stores, NAPA stores, and Car-quest Auto part stores to help me over the years there to find or rent tools. So you can get the right tools if needed even in Hawaii, well at-least on the island of Oahu. Edited August 4, 2015 by carguy75 Quote Link to comment Share on other sites More sharing options...
