EASY FUEL CAPLESS – CONCERNS WITH FUEL NOZZLE INSERTION OR REMOVAL

[WWWPerfA_ZN0W]

TSB 14-0132

EASY FUEL CAPLESS – CONCERNS WITH FUEL NOZZLE INSERTION OR REMOVAL

Publication Date: July 22, 2014

FORD: 2009-2014 Escape, Expedition, F-150, Flex; 2010-2014 Fusion, Mustang, Transit Connect; 2011-2014 Edge, Fiesta; 2012-2014 Focus; 2013-2014 C-MAX; 2008-2015 Explorer; 2010-2015 Taurus; 2015 Transit
LINCOLN: 2009-2014 MKS, Navigator; 2010-2014 MKT, MKZ; 2011-2014 MKX
MERCURY: 2008-2010 Mountaineer; 2009-2011 Mariner; 2010-2011 Milan

ISSUE:

Some vehicles equipped with the Easy Fuel™ Capless Fuel System may exhibit a concern where a fuel nozzle cannot be inserted and/or removed. This concern may be caused by a problem with the fuel station nozzle. The sleeve at the tip of the spout may be missing, not allowing the nozzle to be inserted, or could be loose/gapped not allowing the nozzle to be removed once inserted.

ACTION:

Follow the service procedure steps to correct the condition.

SERVICE PROCEDURE
1.Provide the customer with the customer information sheet. (Figure 2)
2.Identify the customer concern.
a.For fuel nozzle insertion concerns, proceed to Step 3.
b.For fuel nozzle removal concerns, proceed to Step 5.
3.Verify normal system operation by attempting to insert the Easy Fuel™ funnel supplied with the vehicle into the fuel tank filler pipe. a.The funnel is typically located near the spare tire or jacking tools. Refer to the Owner’s Guide for funnel location as required.

4.Does the Easy Fuel funnel insert normally?
a.Yes – the system is operating normally. This article does not apply.
b.No – replace the fuel tank filler pipe. Refer to Workshop Manual (WSM), Section 310-01. Repair is complete.

5.Is the fuel station nozzle still stuck in the fuel tank filler pipe?

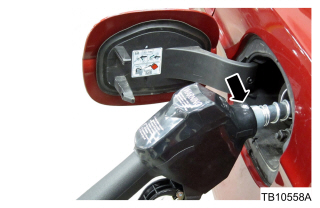

a.Yes – Remove the single hex head set screw at the base of spout near the handle cover. Twist and pull the nozzle handle to separate from the spout. Once the fuel nozzle handle is separated from the spout, the fuel tank filler pipe can be replaced. Refer to WSM, Section 310-01. (Figure 1)

Figure 1 – 14-0132
b.No – inspect the fuel tank filler pipe for physical damage or for the nozzle sleeve remaining inside the capless device.

6.Is the nozzle sleeve visible in the fuel tank filler pipe, or is the fuel filler pipe damaged?
a.Yes – replace the fuel tank filler pipe. Refer to WSM, Section 310-01. Repair is complete.
b.No – the system is operating normally. No further service is required.

PART NUMBER PART NAME
9032 Fuel Filler Neck — See Parts Catalog For Complete Listing (All Focus/ 2013 And Newer Escape Only)
9034 Fuel Filler Neck — See Parts Catalog For Complete Listing (All Vehicles Except Focus/ 2013 And Newer Escape)

OPERATION DESCRIPTION TIME

140132A 2013-2014 Fusion, MKZ, 2011-2014 Fiesta, Edge, MKX: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 0.8 Hr.
140132A 2011-2015 Explorer, 2010 Mustang 4.0L SOHC: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 0.9 Hr.
140132A 2010-2015 Taurus, 2010-2014 Flex, MKT, MKS, 2009-2014 F-150, 2015 Transit, 2009-2014 Expedition, Navigator, 2009-2014 Escape, 2009-2011 Mariner: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 1.0 Hr.
140132A 2010-2014 Mustang, Transit Connect: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 1.1 Hrs.
140132A 2010-2012 Fusion FWD, MKZ FWD, 2010-2011 Milan, 2013-2014 C-MAX: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 1.2 Hrs.
140132A 2008-2010 Explorer, Mountaineer: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 1.6 Hrs.
140132A 2010-2012 Fusion AWD, MKZ AWD, 2010-2011 Milan AWD: Replace The Fuel Filler Pipe Includes Time To Test Nozzle Insertion Or Remove Fuel Station Nozzle (Do Not Use With Any Other Labor Operations) 1.8 Hrs.

WARRANTY STATUS

This is not a repair covered by warranty, but is otherwise eligible Under Special Programs Provisions Requiring Special Claims Coding as listed below: This special program expires on 12/31/2015. No repairs performed after 12/31/2015 are covered.

SPECIAL DEALER CLAIM CODING:

Program Code: R02

BASIC PART NO. CONDITION CODE
9032 (all Focus, 2013 and newer Escape only) or 9034 (all others) 02

Figure 2 – 14-0132
