MIL ON WITH DTCS – P0351, P0352, P0353, P0354, P0355, AND/OR P0356 – BUILT ON OR BEFORE 3/1/2008

[WWWPerfA_ZN0W]

TSB 14-0059

MIL ON WITH DTCS – P0351, P0352, P0353, P0354, P0355, AND/OR P0356 – BUILT ON OR BEFORE 3/1/2008

Publication Date: March 20, 2014

FORD: 2006-2008 Fusion; 2007-2008 Edge; 2008 Taurus, Taurus X
LINCOLN: 2006 Zephyr; 2007-2008 MKX, MKZ
MERCURY: 2006-2008 Milan; 2008 Sable

This article supersedes TSB 13-4-17 to update the Service Procedure and Part List.

ISSUE:

Some 2006 Zephyr, 2006-2008 Fusion, Milan, 2007-2008 MKZ, Edge, MKX, and 2008 Taurus, Taurus X and Sable vehicles built on or before 3/1/2008 and equipped with a 3.0L or 3.5L engine may exhibit a malfunction indicator lamp (MIL) on with diagnostic trouble codes (DTCs) P0351, P0352, P0353, P0354, P0355 and/or P0356 present in the Powertrain Control Module (PCM) and with one or more damaged ignition coil-on-plug(s).

ACTION:

Follow the Service Procedure steps to correct the condition.

SERVICE PROCEDURE
1.Using the IDS scan tool, retrieve continuous memory DTCs. Are DTCs P035X present in the PCM?
a.No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.
b.Yes – proceed to Step 2.
2.Remove only the spark plug(s) and ignition coil-on-plug(s) from the affected cylinder(s). Refer to Workshop Manual (WSM), Section 303-07.
3.Inspect the ignition coil-on-plug(s) that have been removed for cracks and/or signs of heat related damage. Refer to Figures 1-3 at the end of this procedure for examples of damage. Does the ignition coil-on-plug(s) inspected show signs of damage?
a.Yes – proceed to Step 4.
b.No – replace only the spark plug(s) from the cylinders(s) associated with the P035X DTCs and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.
4.Review the Online Automotive Service Information System (OASIS) repair history to determine if a PCM with an RM part number suffix has been installed previously. Has a PCM with an RM part number suffix been installed previously? (e.g. XXXX-12A650-XXRM)
a.No – proceed to step 5.
b.Yes – replace only the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s) and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.
5.Replace the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s). Refer to WSM, Section 303-07.
6.Replace the PCM. Refer to WSM, Section 303-14A.

PART NUMBER PART NAME
AGSF-32W-M 3.0L Spark Plug
AYFS-22F-M 3.5L Spark Plug
6E5Z-12029-BA 3.0L Coil On Plug
7T4Z-12029-E 3.5L Coil On Plug
3F1Z-9H486-AA 3.0L Upper Intake Gasket
7T4Z-9H486-DA 3.5L Upper Intake Gasket
12A650 See Parts Catalog

OPERATION DESCRIPTION TIME

140059A 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.9 Hr.
140059A 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.9 Hr.
140059A 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 1.4 Hrs.
140059A 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.8 Hr.
140059B 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.
140059B 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.
140059B 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.6 Hrs.
140059B 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.
140059C 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.
140059C 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.
140059C 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.5 Hr.
140059C 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.
140059D 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.
140059D 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.
140059D 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.7 Hr.
140059D 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.
140059E 2007-2008 Edge/MKX: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.3 Hr.
140059E 2008 Taurus/Sable/Taurus X: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.7 Hr.
140059E 2006 Zephyr 2006-2008 Milan/Fusion 2007-2008 MKZ: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.6 Hr.

WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.

DEALER CODING

BASIC PART NO. CONDITION CODE
12A650 42

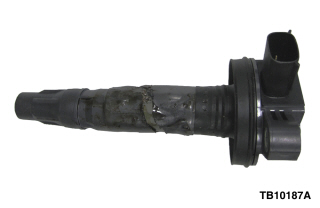

Figure 1 – 14-0059

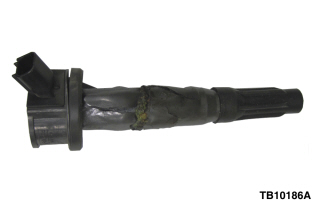

Figure 2 – 14-0059

Figure 3 – 14-0059

[unhapfordownr]

This needs to be a recall not a TSB! I have found many people with the same issue. My edge broke down in the middle of rush hour traffic with no warning at all my check engine didnt even cut on until after I turned it off and restarted to see if it would strat again. Shakes violently and has no power to go. It is an over $2000.00 repair on top of the $700 I have already spent to replace output and input shaft speed sensors 6 months ago! I have only had my edge 14 months and have already put almost $3000.00 into it. Both issues have happened in rush hour traffic with no warning at ALL! I take good care of my edge and just had 4 new tires and brakes all the way around put on 2 weeks before my PCM and coils went out on it. FORD PLEASE PLEASE PLEASE ISSUE A RECALL!!! I could have been killed by my Edge losing power in the middle of 6 lanes of rush hour traffic with no warning not to mention the fact that this issue could cause engine to catch fire if there is gas in spark plugs!!!

[unhapfordownr]

TSB 14-0059



MIL ON WITH DTCS – P0351, P0352, P0353, P0354, P0355, AND/OR P0356 – BUILT ON OR BEFORE 3/1/2008



Publication Date: March 20, 2014



FORD: 2006-2008 Fusion; 2007-2008 Edge; 2008 Taurus, Taurus X

LINCOLN: 2006 Zephyr; 2007-2008 MKX, MKZ

MERCURY: 2006-2008 Milan; 2008 Sable



This article supersedes TSB 13-4-17 to update the Service Procedure and Part List.



ISSUE:



Some 2006 Zephyr, 2006-2008 Fusion, Milan, 2007-2008 MKZ, Edge, MKX, and 2008 Taurus, Taurus X and Sable vehicles built on or before 3/1/2008 and equipped with a 3.0L or 3.5L engine may exhibit a malfunction indicator lamp (MIL) on with diagnostic trouble codes (DTCs) P0351, P0352, P0353, P0354, P0355 and/or P0356 present in the Powertrain Control Module (PCM) and with one or more damaged ignition coil-on-plug(s).



ACTION:



Follow the Service Procedure steps to correct the condition.



SERVICE PROCEDURE

1.Using the IDS scan tool, retrieve continuous memory DTCs. Are DTCs P035X present in the PCM?

a.No – this article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.

b.Yes – proceed to Step 2.

2.Remove only the spark plug(s) and ignition coil-on-plug(s) from the affected cylinder(s). Refer to Workshop Manual (WSM), Section 303-07.

3.Inspect the ignition coil-on-plug(s) that have been removed for cracks and/or signs of heat related damage. Refer to Figures 1-3 at the end of this procedure for examples of damage. Does the ignition coil-on-plug(s) inspected show signs of damage?

a.Yes – proceed to Step 4.

b.No – replace only the spark plug(s) from the cylinders(s) associated with the P035X DTCs and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.

4.Review the Online Automotive Service Information System (OASIS) repair history to determine if a PCM with an RM part number suffix has been installed previously. Has a PCM with an RM part number suffix been installed previously? (e.g. XXXX-12A650-XXRM)

a.No – proceed to step 5.

b.Yes – replace only the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s) and do not continue with this article. Refer to the PC/ED manual for normal diagnostics.

5.Replace the ignition coil-on-plug(s) and the spark plug(s) for the affected cylinder(s). Refer to WSM, Section 303-07.

6.Replace the PCM. Refer to WSM, Section 303-14A.



PART NUMBER PART NAME

AGSF-32W-M 3.0L Spark Plug

AYFS-22F-M 3.5L Spark Plug

6E5Z-12029-BA 3.0L Coil On Plug

7T4Z-12029-E 3.5L Coil On Plug

3F1Z-9H486-AA 3.0L Upper Intake Gasket

7T4Z-9H486-DA 3.5L Upper Intake Gasket

12A650 See Parts Catalog



OPERATION DESCRIPTION TIME



140059A 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.9 Hr.

140059A 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.9 Hr.

140059A 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 1.4 Hrs.

140059A 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Right Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations C Or D And E) 0.8 Hr.

140059B 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.

140059B 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.

140059B 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.6 Hrs.

140059B 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Right Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations C Or D And E) 1.1 Hrs.

140059C 2007-2008 Edge/MKX: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.

140059C 2008 Taurus/Sable/Taurus X: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.

140059C 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.5 Hr.

140059C 2007-2008 MKZ: Check DTCs Replace One Spark Plug On The Left Side Of The Engine, Inspect The Ignition Coil (Can Be Claimed With Operations A Or B And E) 0.4 Hr.

140059D 2007-2008 Edge/MKX: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.

140059D 2008 Taurus/Sable/Taurus X: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.

140059D 2006 Zephyr 2006-2008 Milan/Fusion: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.7 Hr.

140059D 2007-2008 MKZ: Check DTCs Replace Two Or More Spark Plugs On The Left Side Of The Engine, Inspect The Ignition Coils (Can Be Claimed With Operations A Or B And E) 0.6 Hr.

140059E 2007-2008 Edge/MKX: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.3 Hr.

140059E 2008 Taurus/Sable/Taurus X: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.7 Hr.

140059E 2006 Zephyr 2006-2008 Milan/Fusion 2007-2008 MKZ: Additional Time To Replace The PCM And The Ignition Coils As Needed Only If Ignition Coils Were Faulty (Must Be Claimed With Operation A, B, C, Or D) 0.6 Hr.



WARRANTY STATUS



Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage.

Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.



DEALER CODING



BASIC PART NO. CONDITION CODE

12A650 42


Figure 1 – 14-0059


Figure 2 – 14-0059


Figure 3 – 14-0059



[akirby]

Ok, you vented your frustration and that's fine, but let's not keep repeating the same post over and over please.



This is not a recall issue - that's reserved for things the government deems to be safety related and this doesn't qualify (I understand you disagree but you need to talk to the NHTSA about that).



Your vehicle is 10 years old. Even if they had extended the warranty on these components you probably wouldn't be covered.



You can probably find a used PCM and new coils at an independent shop for a lot less.

[Waldo]

fact that this issue could cause engine to catch fire if there is gas in spark plugs!!!





Uh, the purpose of a spark plug is to light gas on fire. Your engine doesn't run specifically because the spark plugs are unable to light the gas on fire

[luminator]



Uh, the purpose of a spark plug is to light gas on fire. Your engine doesn't run specifically because the spark plugs are unable to light the gas on fire

And gas does not go in the spark plug?. It is a break down of an 7-10 year old vehicle that is outside factory warranty, its the same as a fuel pump failure, ECM frying, ect. It sucks that it happens but it is not causing fires, exploding tires, cruise control or the GM electric steering failure on the Cobalts all which caused serious or life threatening accidents. Yes a vehicle dying on the freeway is dangerous but it does not come to a crashing stop, you lose power and drift to a stop. It is not a Recall reason, suck up it up and pay for your repair, it is part of older vehicle ownership.
