Wubster100

This doesn’t work on my 2021 Edge, or any of the newer Fusions. I am able to view the the temperature and fan status, but I cannot change it. Has anyone tried it on 2018, 2019, or 2020 Edge?

Considering that you have no DTCs, an IPMA self test may help you find faults that will trigger a DTC.

Amazing! Thanks for sharing the details.

I want to install the red led HUD onto my 2021.

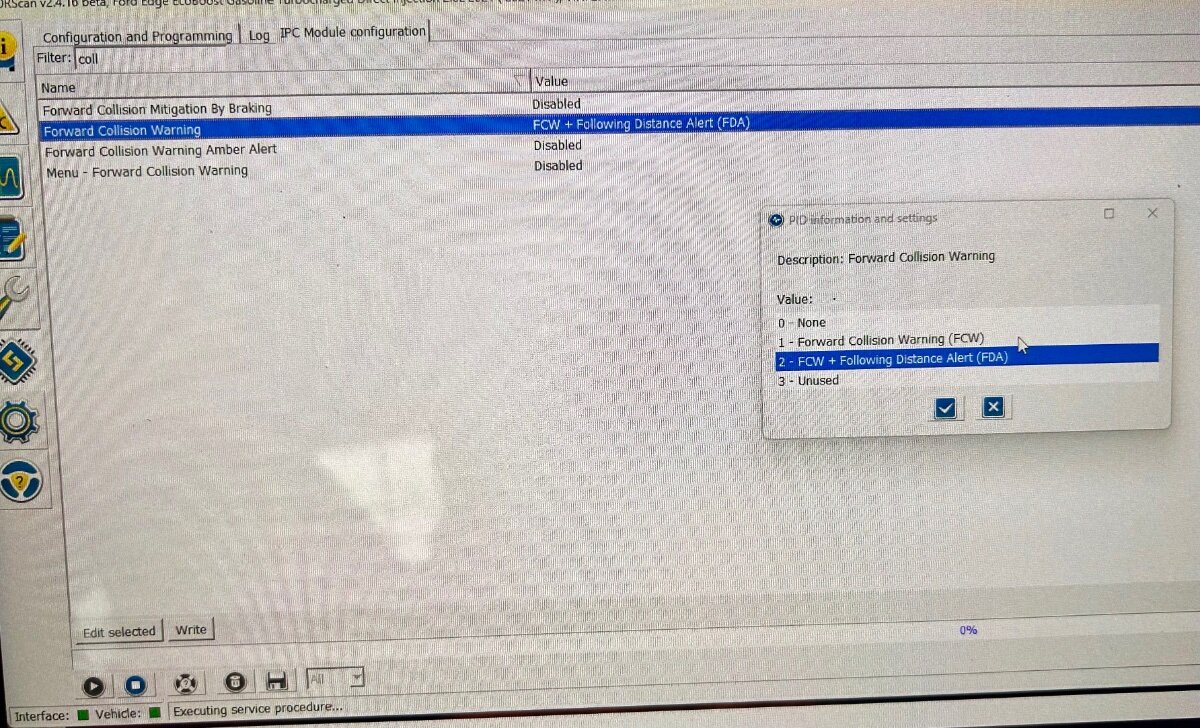

@johnmarkp, @1004ron : I have installed adaptive cruise control, but for a while I never really investigated into the distance indication. The distance indication should work for most IPCs, as long as you have adaptive cruise control. The code is quite simple. Inside of IPC configuration, just change “Forward Collision Warning” from “Forward Collision Warning (FCW)” to “FCW + Following Distance Alert (FDA)”

IPMA Camera Windshield Defrost Heater The camera windshield defrost heater keeps the windshield in front of the IPMA clear of frost and ice. The IPMA uses input from the front camera and the ambient air temperature to turn the camera windshield defrost heater on and off. Voltage and ground is supplied to the heater by the IPMA. The heater may be commanded on if the ambient temperature is below 5°C (41°F ). The IPMA camera windshield defrost heating element is integral to the windshield and can not be serviced without replacing the windshield. Before replacing the IPMA camera heated windshield element or the IPMA for an IPMA camera heated windshield element concern, verify the integrity of the wiring, connectors and terminals on the jumper harness. Camera Windshield Defrost Heater The camera windshield defrost heater is a resistive-type heater grid that is adhered to the inside of the windshield directly in front of the IPMA camera. The camera windshield defrost heater uses a jumper harness between the component and the vehicle harness. Before replacing the camera windshield defrost heater or IPMA for a camera windshield defrost heater concern, verify the integrity of the wiring, connectors and terminals on the jumper harness.

B120C:11 Heater for Windshield Mounted Sensor: Circuit Short To Ground An on-demand and continuous memory DTC that sets in the IPMA if an excessive current draw is detected on the heater output circuit. B120C:13 Heater for Windshield Mounted Sensor: Circuit Open An on-demand and continuous memory DTC that sets in the IPMA if a lower than expected current draw is detected on the heater output circuit. U1000:11 Solid State Driver Protection Activated: Circuit Short To Ground A continuous memory DTC that set in the IPMA when the IPMA has temporarily disabled the camera windshield heater defroster output because an excessive current draw exists (such as a short to ground). The IPMA cannot enable the output driver until the short is corrected. ADDRESS all other IPMA Diagnostic Trouble Codes (DTCs) first. After the cause of the concern is corrected, CLEAR the Diagnostic Trouble Codes (DTCs) and REPEAT the IPMA self-test to enable the output driver

The IPMA supplies voltage and ground to the camera windshield defrost heater. The IPMA uses input from the front camera and the ambient air temperature data from the PCM to command the heater on and off. The heater may be commanded on if the ambient temperature is below 5°C (41°F)

Distance indication is only available for vehicles with adaptive cruise control. The top car icon moves up and down, getting closer or further to your vehicle icon, based on the distance to the vehicle in front of you.

What Is Distance Indication Distance indication displays the gap between your vehicle and the vehicle ahead of you. Note: The graphic does not display if you switch on cruise control or adaptive cruise control. Vehicle Speed System Sensitivity Distance Indicator Color Distance Gap Time Gap 62 mph (100 km/h). Normal. Gray. Greater than 82 ft (25 m). Greater than 0.9 seconds. Yellow. 56–82 ft (17–25 m). 0.6-0.9 seconds. Red. Less than 56 ft (17 m). Less than 0.6 seconds. Switching Distance Indication On and Off  To switch the system on or off, use the instrument cluster display: Using the instrument cluster display controls on the steering wheel, select Driver Assist. Select Pre-Collision. Switch Dist. Indication on or off. Distance Indication Indicator  The indicator displays the time gap between your vehicle and vehicles traveling in the same direction ahead of you.

@HazCan you please post the rain sensor wiring diagrams?

With inspiration from @1004ron replacing their rain sensor, I will attempt to install a rain sensor into my Edge. I always find myself constantly adjusting the wiper speed every time it rains or snows, and it gets annoying if I shut the vehicle off and the wiper’s don’t return to their resting position because they are in the middle of wiping the windshield. I will have to try to sand the black stuff off of the windshield so the sensor can be installed.

Remove the IPMA cover by pulling down on it, starting from the front of the vehicle. Do you see the IPMB heating element wiring?

There is nothing broken with my current ABS module. I will be upgrading to a CADS3 ABS module. This new ABS module will support adaptive cruise control (down to 0mph stop and go, instead of down to 12mph), evasive steering assist, lane centering, and auto hold.

OTA updates have only been a bad experience for me. They seem to be slow to push out new updates. The only reliable way to get updates is to use diagnostic scan tools.

Latest update on my progress: A new rear camera should be here in a few days. I have installed new IPMB firmware to change the vehicle icon to a Ford Edge.

Those are all good things to consider. I will also have to replace the battery soon. I have a battery jump starter with me, so right now I am just waiting until the battery gets low enough to not start the car anymore. Is there maintenance for power steering because it is electric? Ford says to change the brake fluid every 3 years now. I should get that done when I replace / upgrade my ABS module soon. What do you mean by "blinker"? Turn signal bulbs? I recently changed the cabin air filter. I got the filter on clearance sale from Walmart.

As the others have said above, you probably need to replace your battery. It seems like all Fords have these battery problems.

I am at 70k right now on my 2021. Soon I will replace the transmission fluid, oil change, and maybe RDU? and PTU?

@Haz Can you post information from the 2019+ Ford Edge China 3 row / 7 seat? Specifically information about the side mirrors and cameras.

Welcome to the forum @Mustache, Attached is a wiring diagram for the turn signal lamps. Have you checked the lamp holder to ensure that the bulb has a good connection? Can you measure parking lamp voltage at the lamp holder? Turn Signal-Stop-Hazard Lamps Wiring Diagram 1 - 2009 Edge Workshop Manual.pdf
